XKY-O13

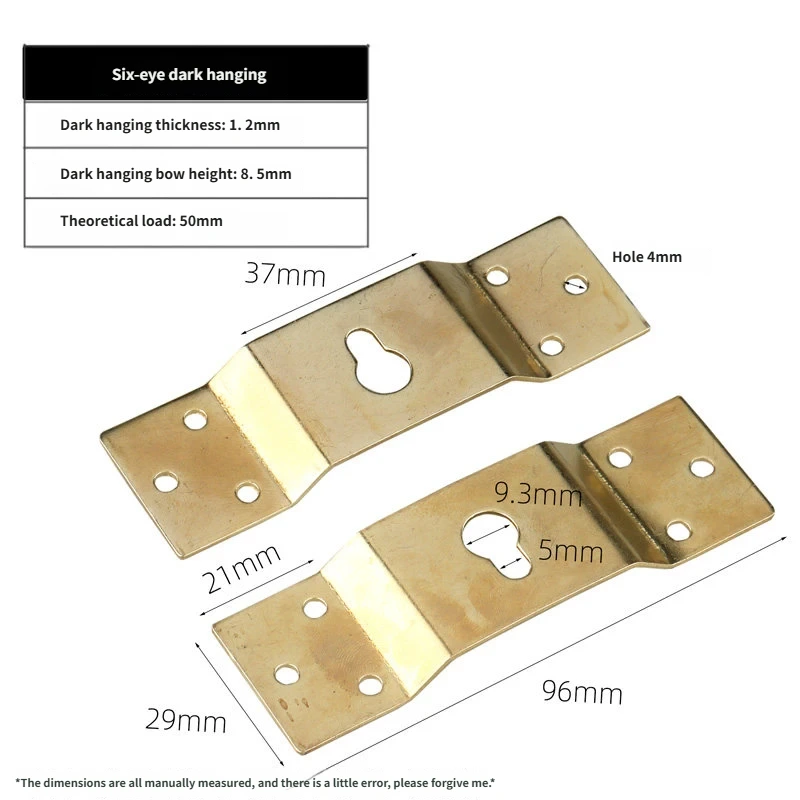

O13-Gold Six-Hole Concealed Hanger – 96×29 mm (50 kg)

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

  • Category: Picture Framing Hardware / Flush Mount Brackets / Z-Clips
  • MOQ: 100
  • Lead time: 7-10days
Get quote

Description

The widest and most anchor-point-rich concealed hanger in the XKY range – six holes across 96 mm provide exceptional lateral stability and load distribution for the heaviest frames, mirrors, and shelving units.

Specifications

SKUXKY-O13
Product Typehardware
MOQ100
Lead Time7-10days
Overview<p>The widest and most anchor-point-rich concealed hanger in the XKY range – six holes across 96 mm provide exceptional lateral stability and load distribution for the heaviest frames, mirrors, and shelving units.</p>
Highlights96mm widest 6-hole
Custom PackagingYes
thickness1.2
weight~18 (pair est.)
over all length96
over all width29
bow/arch height8.5
key hole slot length9.3
key hole slot width5
screw hole diameter4
no.of screw holes6
max load capacity50
colorGold
Key specs
11

FAQ

What makes six holes better than four for heavy loads?

Six holes spread the load across three screw points per side, reducing stress per anchor by 50% compared to two-hole designs – critical for loads above 20 kg to prevent wall-anchor failure.

Is the 96 mm size compatible with standard frame backs?

The hanger requires a frame back at least 100 mm wide; it is best suited for large picture frames, wide shelves, and display panels with substantial backing.

Does the 8.5 mm bow height affect frame-to-wall gap?

Yes – the frame will stand approximately 9 mm from the wall; this is acceptable for most applications but visible from the side on very thin frames. Use spacers if a closer gap is required.
