XKY-O09

O09-Stainless Steel Four-Hole Concealed Hanger – 66×32 mm (Heavy Duty)

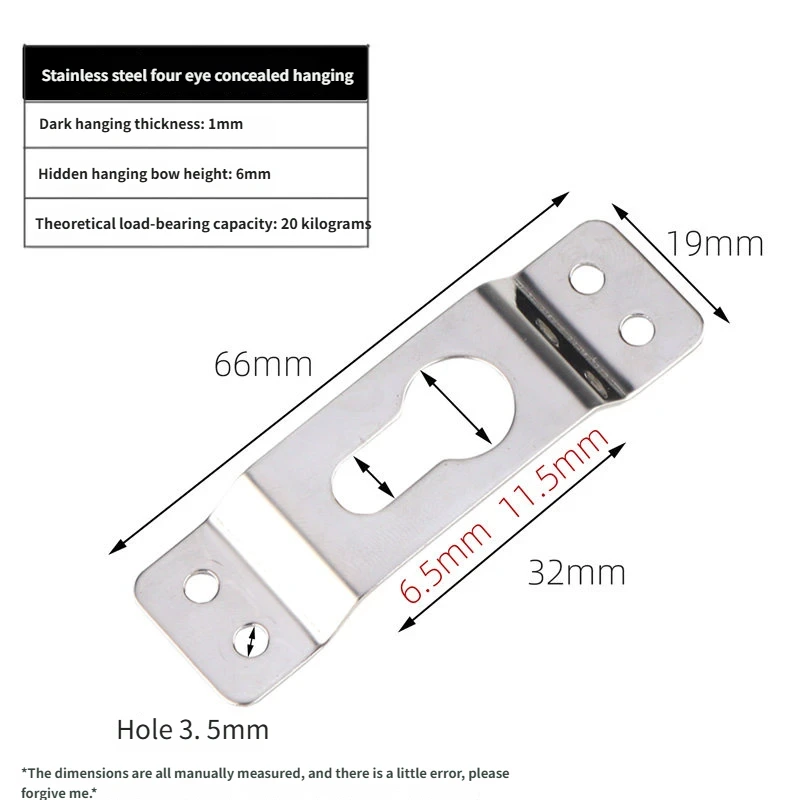

Stainless Steel Four Hole Concealed Picture Hanger 66 mm long 32 mm wide 1 mm thick bow 6 mm large keyhole 11.5×6.5 mm 20 kg heavy duty

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Flush Mount Brackets / Z-Clips
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

The highest-capacity stainless steel concealed hanger in the XKY range at 20 kg, with four mounting holes and an extra-wide 32 mm body – the premium choice for heavy mirrors, bathroom shelving, and commercial displays.

Specifications

SKU	XKY-O09
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The highest-capacity stainless steel concealed hanger in the XKY range at 20 kg, with four mounting holes and an extra-wide 32 mm body – the premium choice for heavy mirrors, bathroom shelving, and commercial displays.</p>
Highlights	SS 20kg 4-hole max
Custom Packaging	Yes
thickness	1.0
weight	~12 (est.)
over all length	66
over all width	32
bow/arch height	6
key hole slot length	11.5
key hole slot width	6.5
screw hole diameter	3.5
no.of screw holes	4
max load capacity	20
color	Silver (brushed)

Key specs
—	11

FAQ

What is the practical load limit when using two O09 hangers?

Two O09 hangers can theoretically support 40 kg combined; practically, we recommend a maximum of 25–30 kg with all four holes anchored to studs or masonry.

What screw specification is recommended for the 20 kg rating?

Use M4 × 30 mm stainless steel hex-head screws into wall studs, or M4 × 50 mm stainless steel with 60 kg-rated toggle anchors for drywall without studs.

Can this hanger be used for floating bathroom shelves?

Yes – this is one of the most popular applications; the stainless construction handles steam and moisture while the 20 kg rating supports loaded shelves with toiletries.
