Fully Automated Production Line. Zero Compromise.
Fully automated smart production line with minimal supervision
Integrate cutting, joining, and back-panel finishing into one continuous workflow. Repeatable throughput, minimal labor dependency.
Cutting → joining → back-panel finishing in one continuous line. Repeatable throughput with minimal labor.
Explore the Production Line- CE Certified
- Schneider/Siemens Components
- 20+ Years R&D
How the Full Line Runs
Station 1: Cutting
NC600 / NC500 stack cutting for high-throughput profile preparation.
Throughput: 5,000–10,000+ frames/day
Labor: One operator can manage multiple stations
Automation: Continuous stack cutting / modular feeding
Station 2: Joining
NN300 quad-angle PLC joining with synchronized nailing.
Speed: Up to ~15 pieces/minute
Labor: Low-supervision monitoring
Automation: Quad-angle sync, continuous feed
Station 3: Backing Finishing
FP100 back-panel support cutting + FP200 dovetail finishing.
Throughput: Matched to main line cycle
Labor: Minimal loading/unloading
Automation: Modular back-end expansion
Factory Configurations by Daily Output
Configuration A: Standard Factory Line
Throughput: 5,000–8,000 frames/day
Equipment: NC500 → NN300 → FP100 + FP200
Best for: Mid-to-large factories seeking stable volume and flexible scheduling.
Configuration B: Flagship Factory Line
Throughput: 10,000+ frames/day
Equipment: NC600 → NN300 → FP100 + FP200
Best for: Large-scale factories targeting maximum throughput and continuous operation.
Automation Value Snapshot
Traditional Manual Line
Daily output: 1,000–2,000 frames
Labor: 8–12 people
Waste rate: 5–8%
Payback period: —
XKY Automated Line
Daily output: 5,000–10,000+ frames
Labor: 2–3 people
Waste rate: <2%
Payback period: 6–12 months
Technical FAQ
How should I choose between NC600 and NC500?
NC600 is optimized for stable-shape, ultra-high-volume continuous cutting. NC500 is more flexible for mixed material jobs such as wood, aluminium, and PVC profile cutting.
How many operators are needed for NN300?
NN300 is a PLC-based automatic machine with quad-angle synchronized joining and auto feed support. One operator can supervise multiple machines in a line.
How much floor space does a full line require?
It depends on configuration, but a standard factory line usually requires around 80-150 square meters. We provide free line layout planning based on your site.
Can we buy part of the line first and expand later?
Yes. The line is modular. You can start with NC500 + NN300 and add FP100/FP200 later as output requirements increase.
How is overseas installation and after-sales support handled?
All equipment uses heavy-duty fumigation-free export crates. Engineers provide 1-on-1 remote commissioning support, and key electric components are sourced from globally available suppliers.
Featured Factory Machines

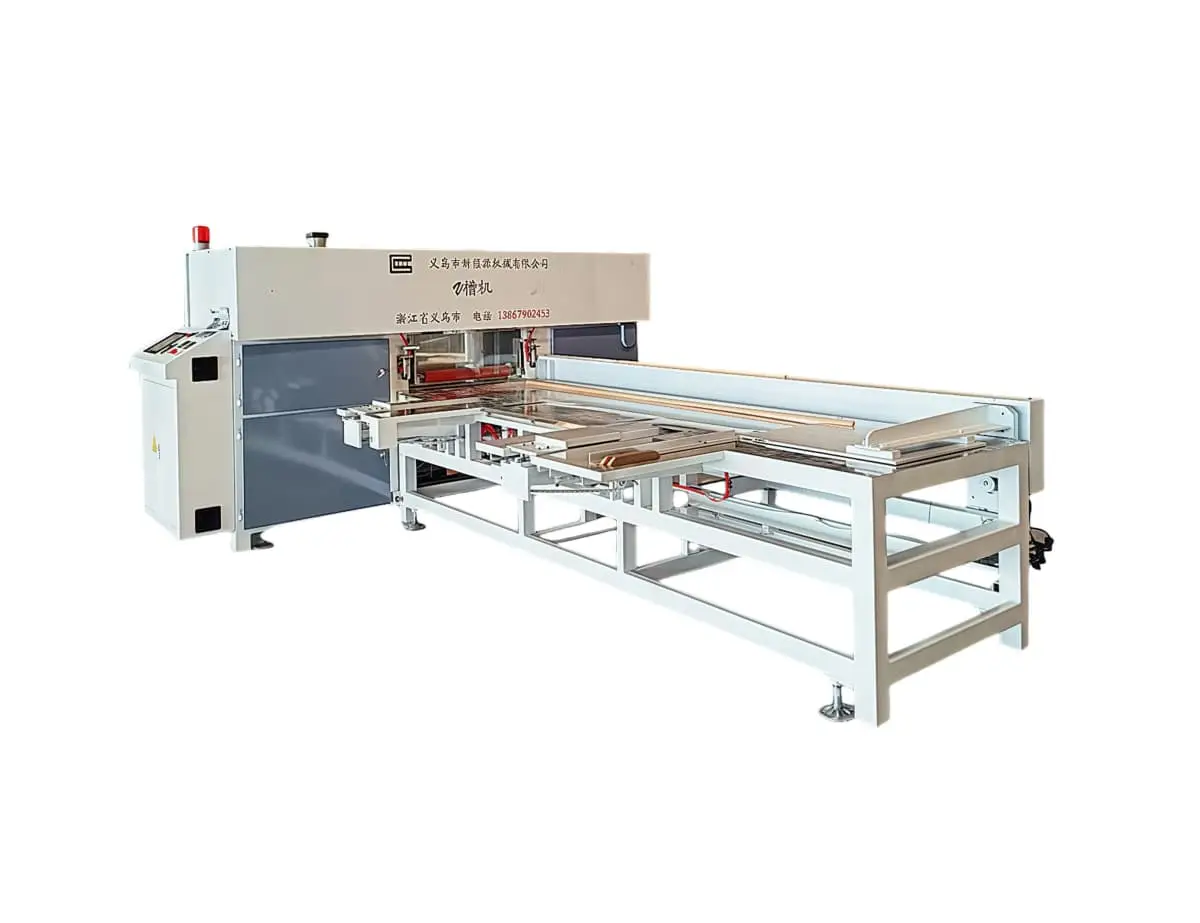

NC600 Industrial High-Capacity Double Miter Saw & Stack Cutter
Maximize output with the NC600 Double Miter Saw. Industrial-grade stack cutter engineered for mass production of heavy-duty photo frames and moulding.

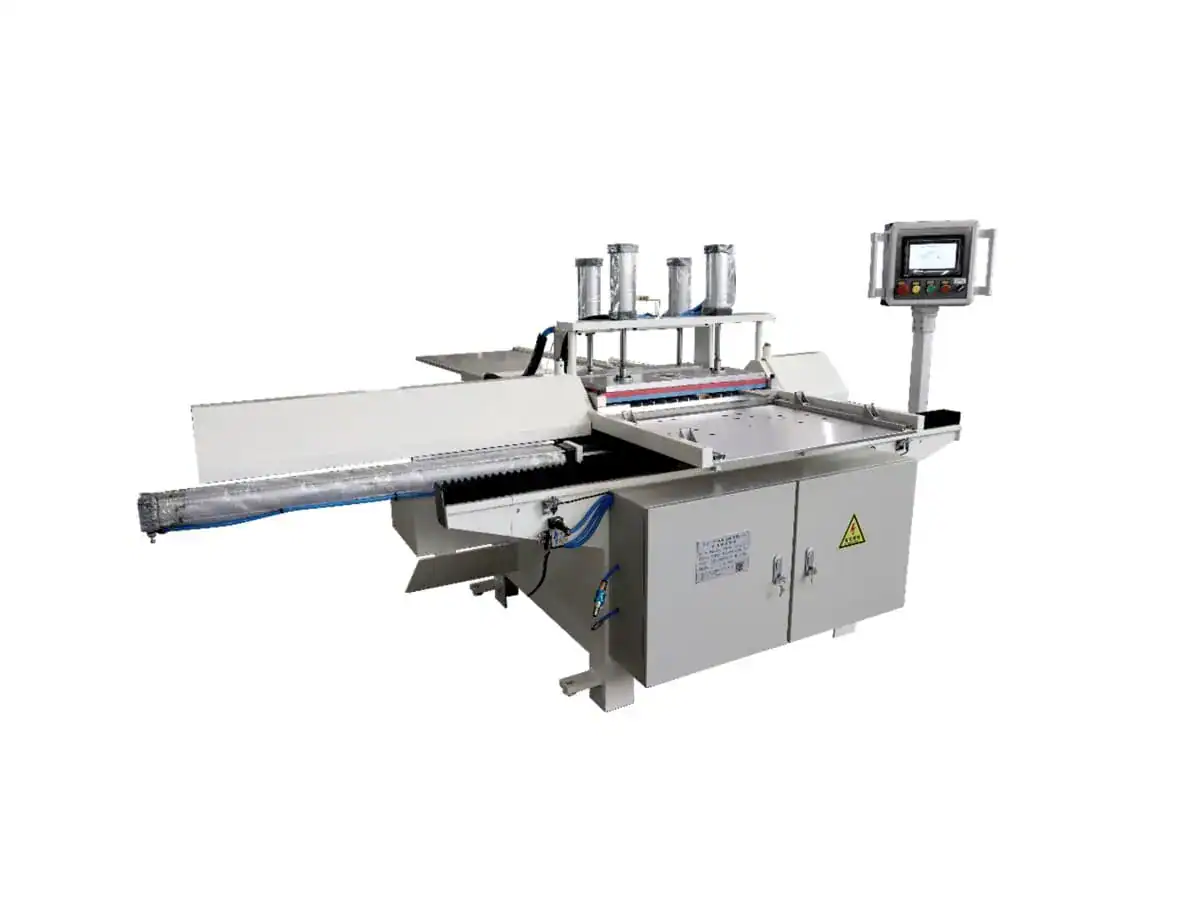

NC500 Auto Pneumatic Double Miter Saw for Picture Framing
NC500 is an automatic pneumatic double miter saw designed for precision picture framing. Features smart speed adjustment for wood, MDF, and PVC cutting.

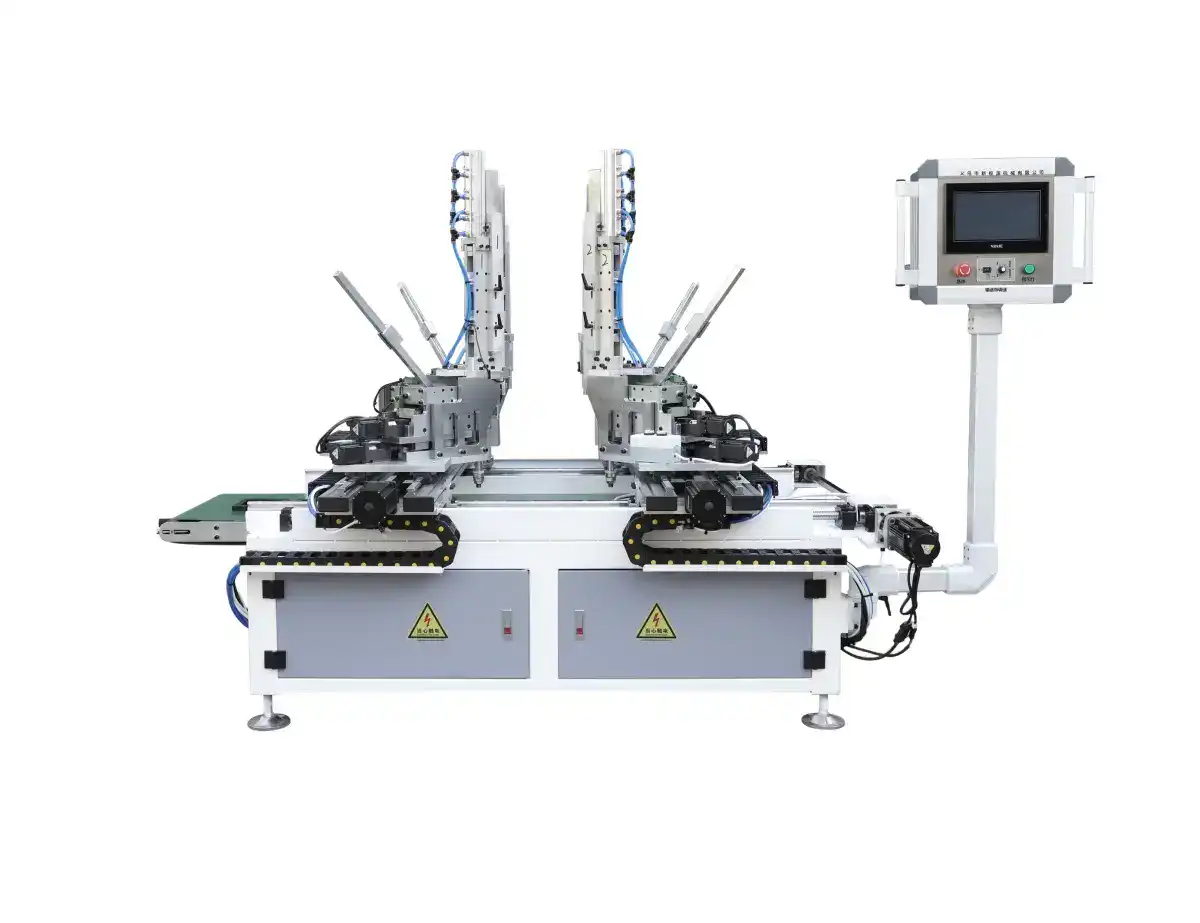

NN300 Auto Quad-Angle Underpinner V-Nailer Machine
Automate your assembly with the NN300 Auto Underpinner. Features quad-angle nailing and high-speed V-nailer technology for mass frame joining.

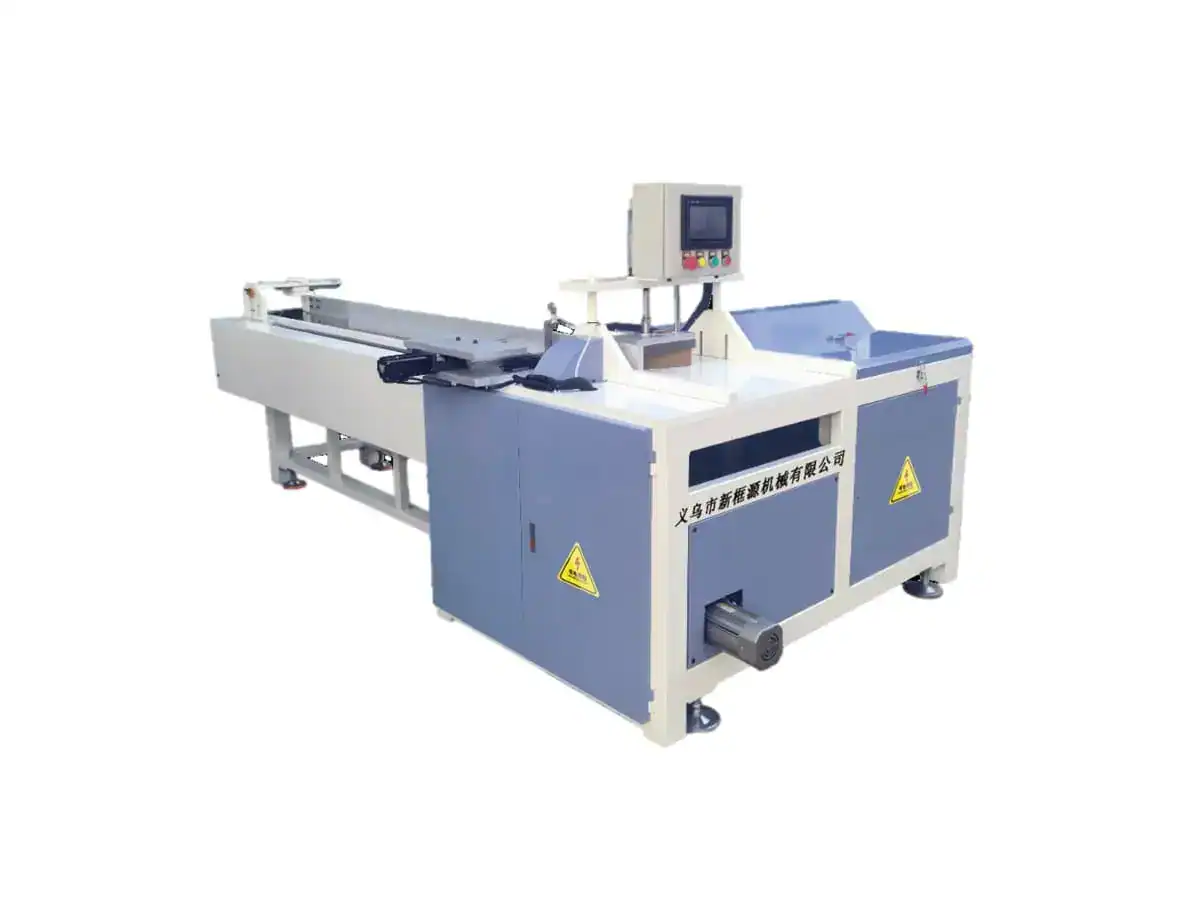

FP100 Automatic Easel Back Cutting Saw (Frame Support)
FP100 is an automatic cutting saw for photo frame easel backs. High precision strut card cutter for mass production of frame supports.

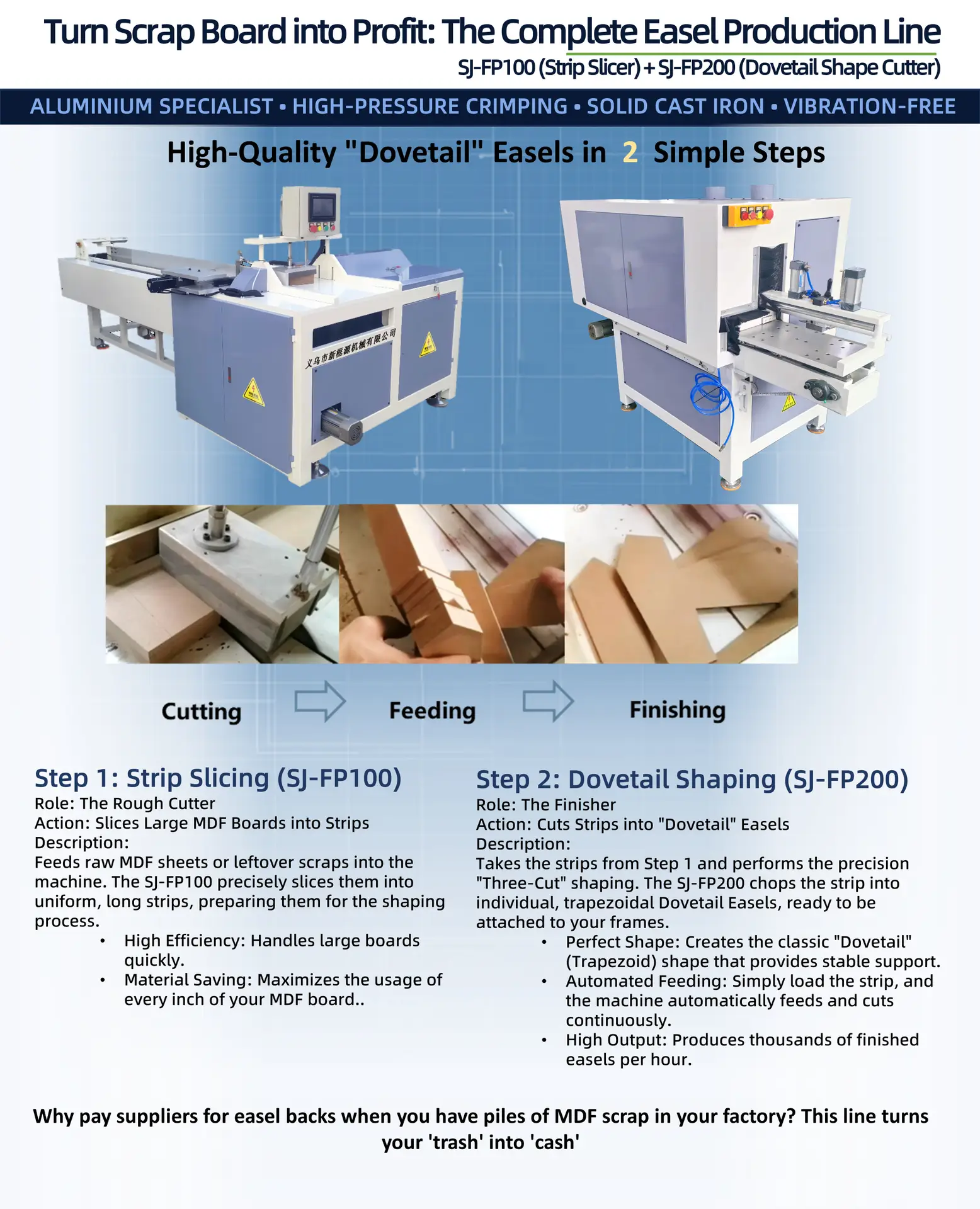

FP200 Automatic Easel Back Dovetail Routing Machine
Specialized Dovetail Routing Machine for frame easel backs. Creates precise dovetail keyways for secure back panel support assembly.
Need factory line planning? Request free line layout consultation →
