XKY-O10

O10-Gold Square Curved Concealed Hanger – 29×18 mm

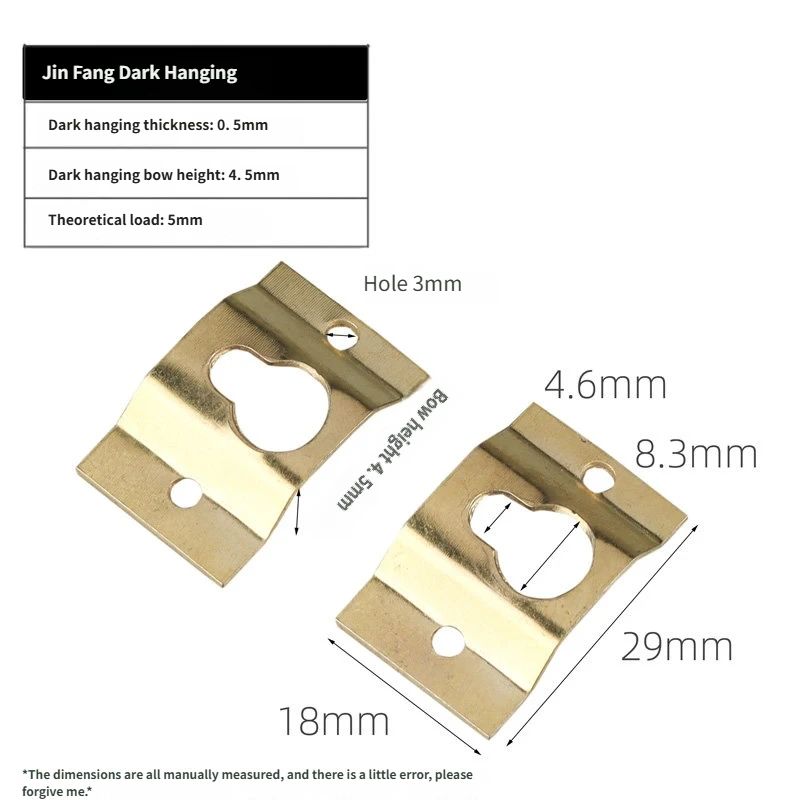

Gold Square Curved Concealed Picture Hanger 29 mm tall 18 mm wide 0.5 mm steel bow 4.5 mm figure-8 keyhole slot

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Flush Mount Brackets / Z-Clips
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

A compact curved concealed hanger with a unique figure-8 keyhole slot, designed for small square frames, tiles, and decorative plaques where a minimal footprint is critical.

Specifications

SKU	XKY-O10
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>A compact curved concealed hanger with a unique figure-8 keyhole slot, designed for small square frames, tiles, and decorative plaques where a minimal footprint is critical.</p>
Highlights	Figure-8 slot curved
Custom Packaging	Yes
thickness	0.5
weight	~2 (est.)
over all length	29
over all width	18
bow/arch height	4.5
key hole slot length	8.3
key hole slot width	4.6
screw hole diameter	3
no.of screw holes	2
max load capacity	~5 (est.)
color	Gold

Key specs
—	11

FAQ

What is a figure-8 keyhole slot?

A figure-8 slot has two connected circular openings – a larger entry circle (to pass the screw head) and a smaller locking circle (where the screw neck seats), providing a very secure positive lock compared to standard oval slots.

Is the curved body purely aesthetic?

The curved body also serves a structural purpose: the arch distributes the hanging load more evenly across the frame back, reducing stress concentration at the screw points.

What frame back thickness is needed?

The 4.5 mm bow height requires a minimum 5 mm thick frame back; for thinner backs, countersink the screw holes so the hanger sits flush.
