O12-Gold High-Bow Four-Hole Concealed Hanger – 69×20 mm (50 kg)

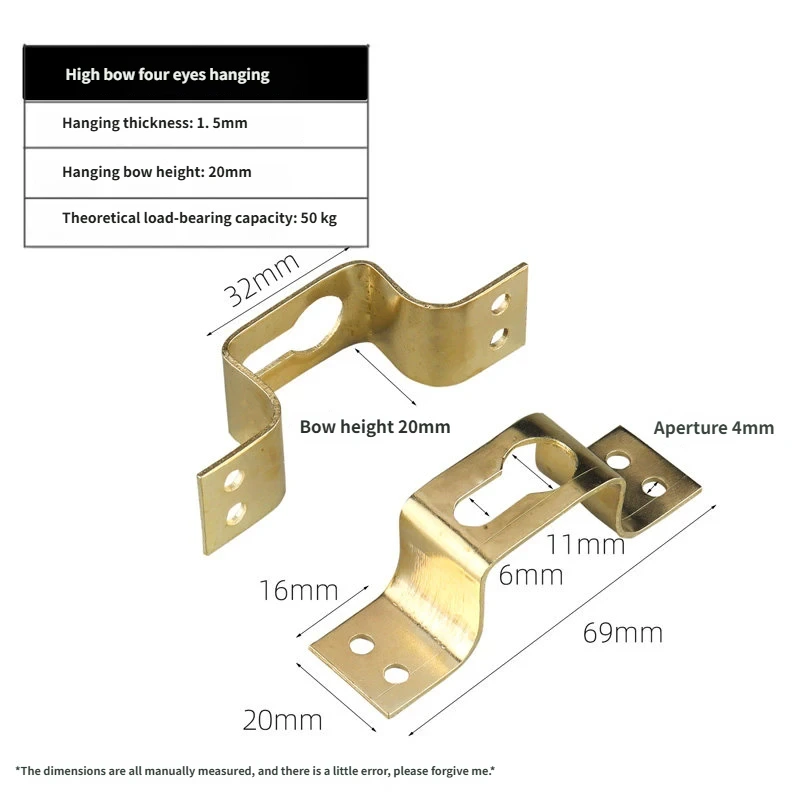

Gold High Bow Four Hole Concealed Hanger 69 mm long 20 mm wide 1.5 mm thick bow 20 mm keyhole 11×6 mm 50 kg ultra heavy duty

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Flush Mount Brackets / Z-Clips
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

The most powerful concealed hanger in the XKY catalog at 1.5 mm gauge and 50 kg theoretical load, with a 20 mm high bow for extremely thick mouldings, heavy mirrors, and commercial-grade shelf installations.

Specifications

SKU	XKY-O12
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The most powerful concealed hanger in the XKY catalog at 1.5 mm gauge and 50 kg theoretical load, with a 20 mm high bow for extremely thick mouldings, heavy mirrors, and commercial-grade shelf installations.</p>
Highlights	50kg ultra-heavy 1.5mm
Custom Packaging	Yes
thickness	1.5
weight	~15 (pair est.)
over all length	69
over all width	20
bow/arch height	20
key hole slot length	11
key hole slot width	6
screw hole diameter	4
no.of screw holes	4
max load capacity	50
color	Gold

Key specs
—	11

FAQ

What applications require a 50 kg-rated hanger?

Large beveled mirrors (10–20 kg), heavy stone-topped floating shelves (15–25 kg), commercial display panels, and cast-resin art pieces all benefit from the 50 kg rating.

What screws are required to achieve the 50 kg rating?

Use M5 × 60 mm hex-head screws into wall studs for full 50 kg capacity; for masonry, use M5 × 60 mm expansion anchors rated at least 60 kg each.

Why is the bow 20 mm high on this hanger?

The 20 mm bow accommodates very thick or deeply rebated frame mouldings (up to ~18 mm depth) and provides clearance for large screw heads, ensuring the interlocking profiles engage cleanly.
