XKY-O05

O05-Gold Small Keyhole Concealed Hanger – 49×13 mm

Gold Small Keyhole Concealed Picture Hanger 49 mm long 13 mm wide 0.6 mm gold steel bow 5.5 mm 6.5mm slot

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Flush Mount Brackets / Z-Clips
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

A compact slim concealed hanger with smaller keyhole slot and 3.5 mm holes, designed for lighter frames and decorative objects where a smaller hardware footprint is preferred.

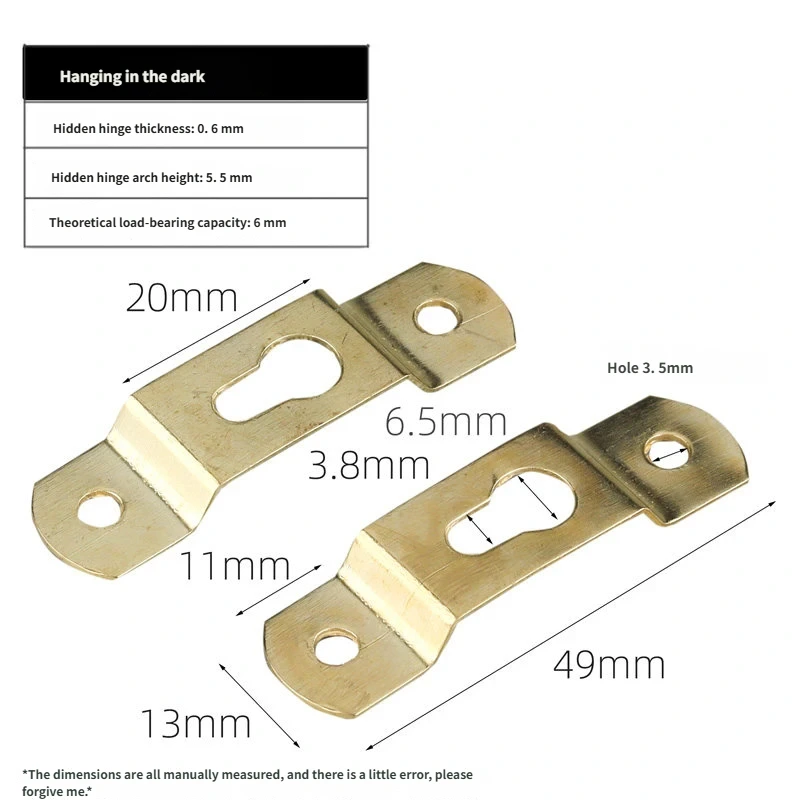

Specifications

SKU	XKY-O05
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>A compact slim concealed hanger with smaller keyhole slot and 3.5 mm holes, designed for lighter frames and decorative objects where a smaller hardware footprint is preferred.</p>
Highlights	Slim 0.6mm compact
Custom Packaging	Yes
thickness	0.6
weight	~3.5 (est.)
over all length	49
over all width	13
bow/arch height	5.5
key hole slot length	6.5
key hole slot width	3.8
screw hole diameter	3.5
no.of screw holes	4
max load capacity	~6 (est.)
color	Gold

Key specs
—	11

FAQ

How does the 3.5 mm hole size affect screw choice?

Use M3.5 or #6 pan-head screws; avoid #8 (4 mm shank) which won't pass through the 3.5 mm holes cleanly.

What is the minimum frame back thickness for this hanger?

The 5.5 mm bow height means the frame back must be at least 6 mm thick to properly support the hanger without the screw heads protruding beyond the back surface.

Is this suitable for lightweight canvas frames?

Yes – at 0.6 mm thickness and compact size, it works well on 18–25 mm canvas stretcher bars for a clean no-wire installation.
