T01-E1429B Black Mini Snap Hinge

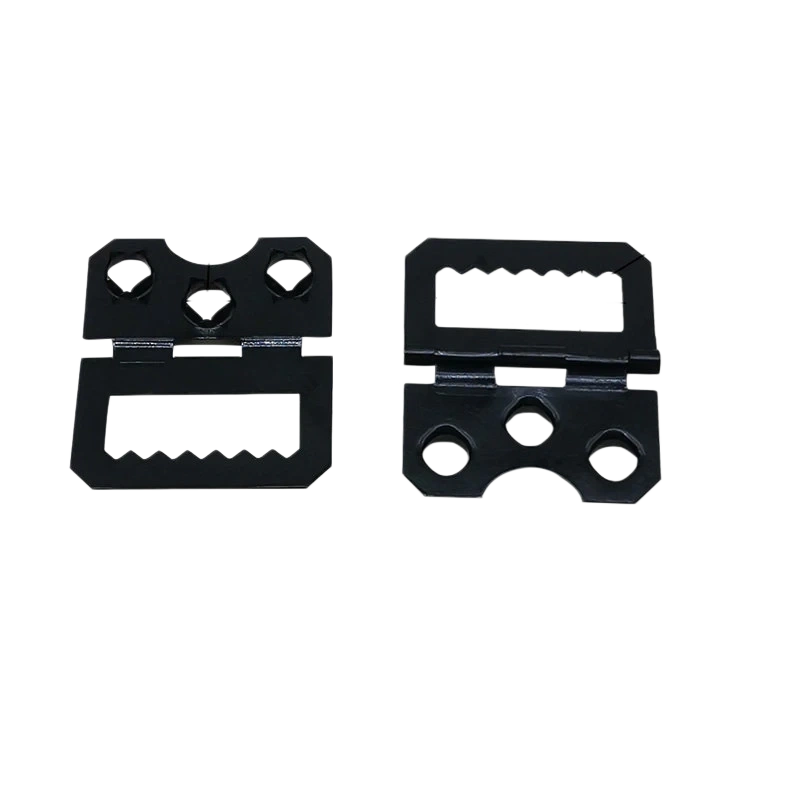

E1429B Black Mini Snap Hinge 31x37mm serrated grip picture frame hardware

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Hinges
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

E1429B Black Mini Snap Hinge – Secure Serrated Grip for Picture Frames

The E1429B Black Mini Snap Hinge is a compact, lightweight hinge crafted specifically for picture frames, decorative boxes, and thin-panel assemblies. The distinctive serrated lower leaf mechanically locks into wood or MDF, preventing loosening over time without requiring adhesive or additional fasteners.

Key Features of the E1429B Black Mini Snap Hinge

Measuring 31mm in width and 37mm in total height, this hinge occupies minimal space on your frame’s edge. The upper leaf spans 10mm and includes an open rectangular slot (23mm × 15mm) that allows tools to pass through during assembly. Three diamond-shaped holes (6mm) on the upper leaf provide strong screw engagement even in thin substrates.

Material & Finish

Manufactured from cold-rolled steel with a matte black electrophoretic coating, the E1429B Black Mini Snap Hinge resists corrosion and maintains a uniform appearance across large production runs. The 0.4mm material thickness keeps the unit flexible enough for easy installation yet rigid enough for repeated opening cycles.

Installation Guide

Position the serrated leaf against the frame’s inner edge. Apply firm thumb pressure to snap the teeth into the substrate. Secure the flat upper leaf with the supplied mounting hardware through the three provided holes. No pre-drilling is required for soft woods.

Specifications at a Glance

Applications

This hinge is widely used in photo frame manufacturing, shadow box assembly, jewelry box production, and decorative wall panel installations. Its low profile and black finish complement both contemporary and traditional frame styles.

Why Choose XKY Framing Hardware?

XKY Framing offers an extensive catalog of professional framing hardware tested to meet international quality standards. Every batch of the E1429B Black Mini Snap Hinge undergoes salt-spray corrosion testing and pull-out force verification before shipment.

For complementary products, explore our hinge selection guide or browse related hardware in our catalog.

Specifications

SKU	T01
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The E1429B Black Mini Snap Hinge is engineered for lightweight picture frames, shadow boxes, and decorative enclosures. The unique serrated lower leaf bites into soft wood or MDF edges to resist pull-out, while the flat upper leaf sits flush and accepts standard screws or nails. At just 3.2g and 0.4mm thick, it adds virtually no weight penalty, making it ideal for mass-production framing or craft applications.</p>
Highlights	Serrated grip lock
Custom Packaging	Yes
Overall Width	31mm
Overall Height	37mm
Upper Leaf Height	10mm
Lower Leaf Height	Lower Leaf Height
Slot Width	23mm
Hole Diameter	6mm
Material Thickness	0.4mm
Weight	3.2g

Key specs
—	8

FAQ

What substrate materials work best with the E1429B hinge?

The serrated teeth penetrate soft woods (pine, basswood), MDF, and medium-density fibreboard effectively. For hardwoods above 800 Janka hardness, pre-score the surface with a utility knife for best grip.

How much weight can the E1429B Black Mini Snap Hinge support?

Each hinge is rated for approximately 1–1.5 kg lateral load when installed in soft wood. For heavier frames, use two or more hinges spaced evenly along the frame edge.

Is the black coating on the E1429B durable?

Yes. The electrophoretic matte black coating passes 48-hour salt-spray tests and is scratch-resistant under normal framing use. Avoid prolonged exposure to moisture for best longevity.
