T08-6234 Black Heavy Spiked Frame Hinge

6234 Black Heavy Spiked Frame Hinge 18x28mm wide spike tabs thick moulding hardware

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Hinges
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

6234 Black Heavy Spiked Frame Hinge – Wide-Span Spike Tabs for Thick Moulding

The 6234 Black Heavy Spiked Frame Hinge is engineered for thicker picture frame mouldings and heavier panel applications where the standard 6229 hinge body is too narrow for reliable spike distribution. The 18mm wide body spans more of the moulding cross-section, distributing load across a wider spike pattern.

Wider Body Design

At 18mm wide (vs 14mm for the 6229), the 6234 Black Heavy Spiked Frame Hinge places spike tabs further from the panel edge, engaging the denser wood fibres in the moulding core. The 12mm viewing hole provides easy positioning during installation.

Specifications

Installation

Orient spikes against the moulding edge at the corner or mid-rail, align with the joint line, and drive home with a single mallet stroke. The wider spike base resists rocking during installation for a cleaner result.

Applications

Thick walnut or oak picture frames (18–30mm moulding depth), canvas stretcher bar corner joins, heavy shadow box assembly, and structural panel partition joins where the narrow 6229 provides insufficient coverage.

When to Choose the 6234 Over the 6229

If your moulding width exceeds 15mm, the 6234 Black Heavy Spiked Frame Hinge is the better choice. Its larger spike footprint reduces the risk of the hinge body shifting during repeated gallery re-hanging and vibration exposure.

See our hinge selection resource for load and sizing guidelines.

Specifications

SKU	T08
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The 6234 Black Heavy Spiked Frame Hinge features a wider 18mm body and enlarged spike arrangement compared to the 6229, providing greater coverage and holding power in thick frame mouldings (18–25mm). It is suited for heavy-duty framing, canvas stretcher bars, and structural panel joins.</p>
Highlights	Wide-span spike tabs
Custom Packaging	Yes

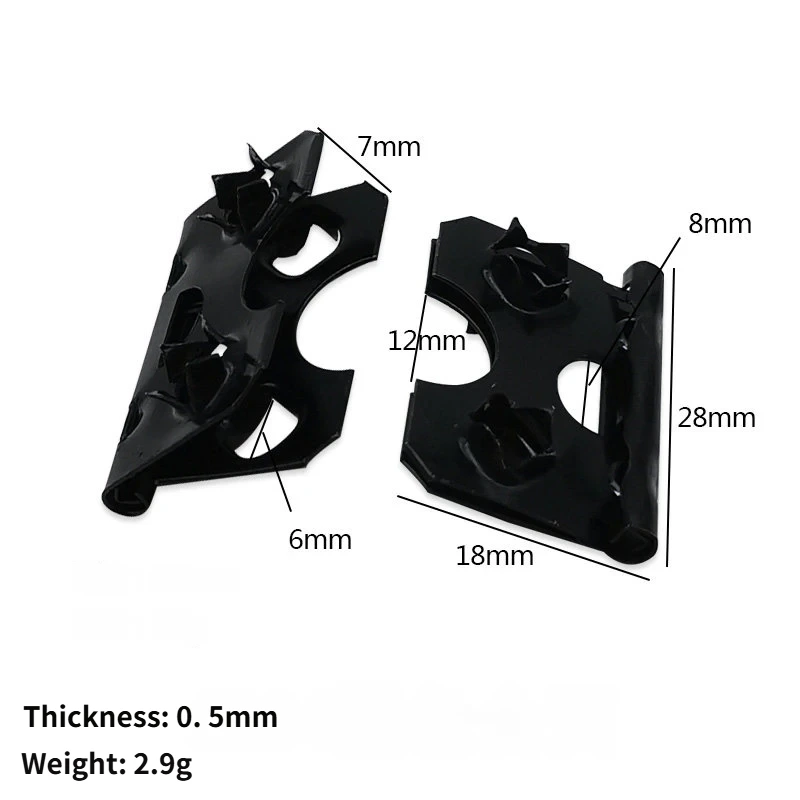

Overall Width	18mm
Overall Height	28mm
Hole Diameter	12mm
Upper Spike Span	Upper Spike Span
Side Spike Tab	7mm
Spike Depth	6mm
Material Thickness	0.5mm
Weight	2.9g

Key specs
—	8

FAQ

How much wider is the 6234 compared to the 6229 hinge?

The 6234 is 4mm wider (18mm vs 14mm) and its hole diameter is 2mm larger (12mm vs 10mm), providing more surface contact with the moulding and greater pull-out resistance.

Can the 6234 be used with the 6229 on the same frame?

Technically yes, but we recommend using the same model on both corners of a frame for consistent load distribution and aesthetic uniformity.

Is the 6234 available in silver finish?

Currently the 6234 is only available in matte black. For silver-finished wide-span hinges, please contact XKY Framing for custom orders.
