T07

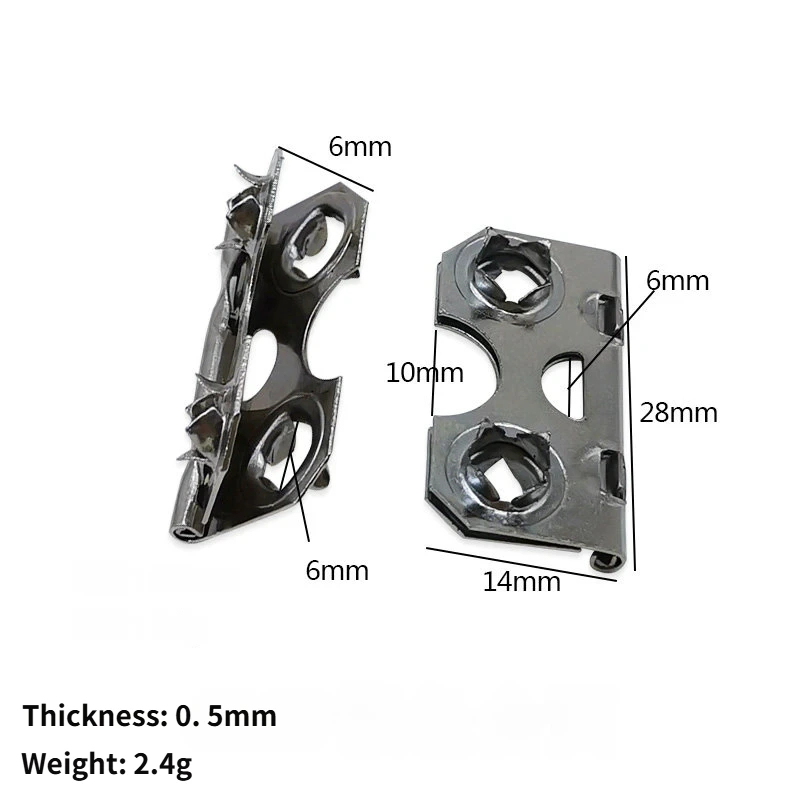

T07-6229 Silver Spiked Frame Hinge

6229 Silver Spiked Frame Hinge 14x28mm zinc bright finish picture frame hardware

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Hinges
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

6229 Silver Spiked Frame Hinge – Zinc Bright Finish for Natural Wood Frames

The 6229 Silver Spiked Frame Hinge delivers the same rapid barbed-spike joining technology as the black 6229 variant, but in a bright zinc electroplated silver finish that complements natural wood, maple, oak, and white-painted picture frame mouldings.

Silver Finish Advantages

The bright zinc coating on the 6229 Silver Spiked Frame Hinge provides excellent corrosion resistance and a reflective finish that remains visible inside frame channels, helping quality-control inspectors verify hinge placement at a glance during production.

Technical Specifications

Differences from the Black 6229 Model

The silver 6229 is 1mm taller (28mm vs 27mm) and 0.1mm thinner (0.5mm vs 0.6mm), resulting in a slightly lighter unit at 2.4g vs 1.9g. The thinner material is offset by the zinc coating’s added surface hardness.

Applications

Natural pine frames, white-painted MDF frames, bleached oak shadow boxes, display cases with light interior linings, and any framing application where dark hardware would be visually intrusive.

Ordering Information

The 6229 Silver Spiked Frame Hinge is available in packs of 50 and 500. Mix-and-match orders with the black 6229 (T06) are available for production facilities running both frame colour lines. See related products in our catalog.

See zinc plating processes for coating durability information.

Specifications

SKU	T07
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The 6229 Silver Spiked Frame Hinge is the bright-zinc variant of the 6229 series, designed for light-toned or white-painted picture frame mouldings where a silver finish blends more naturally. It shares the same barbed spike mechanism for fast tool-free assembly.</p>
Highlights	Silver zinc fast-join
Custom Packaging	Yes
Overall Width	14mm
Overall Height	28mm
Spike Depth	6mm
Hole Diameter	Hole Diameter
Material Thickness	0.5mm
Weight	2.4g
Spike Tabs per Leaf	4
Finish	Bright Zinc Silver

Key specs
—	8

FAQ

Is the 6229 Silver mechanically identical to the 6229 Black?

Almost identical. The silver variant is 1mm taller and 0.1mm thinner, but spike tab dimensions and pull-out strength are equivalent. Both pass the 50N pull-out test.

Will the silver finish tarnish over time?

The bright zinc coating resists tarnishing for 3–5 years in normal indoor conditions. For frames in humid environments such as bathrooms, a clear lacquer topcoat is recommended.

What is the minimum panel thickness for the 6229 Silver?

The spike tabs require a minimum panel or moulding thickness of 8mm for full seating. Thinner substrates may not fully capture all barb points.
