T05-6220 Black Folding Clip Hinge

6220 Black Folding Clip Hinge – Ultra-Compact Screwless Miniature Hinge

The 6220 Black Folding Clip Hinge redefines miniature hinge design with its barbed folding clip mechanism that snaps directly onto thin partition edges, eliminating screws and adhesive entirely. At just 1.4g and 13mm wide, this is the ideal hinge for electronic hobby enclosures, thin-wall craft boxes, and model-scale assemblies.

How the Clip Mechanism Works

The 6220’s folding leaves are pre-bent with barbed teeth along each leaf edge. When pressed onto a partition or panel edge of 0.5–2mm thickness, the barbs dig in and lock mechanically. The central fold then acts as the pivot, allowing 180° rotation without a separate pin or barrel.

Dimensions & Weight

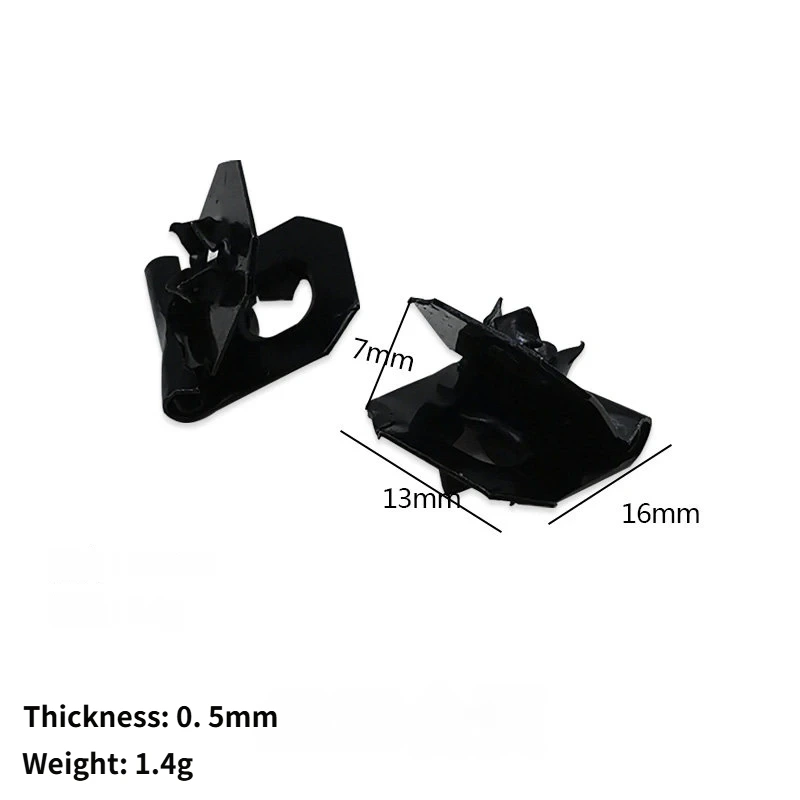

Open span: 16mm | Folded depth: 7mm | Width: 13mm | Material: 0.5mm cold-rolled steel | Weight: 1.4g | Finish: Matte Black

Material Compatibility

Designed for panels 0.5–2mm thick including craft foam board, thin plywood, styrene plastic sheet, and ABS panels. Not suitable for solid wood thicker than 2mm without modification.

Applications

The 6220 Black Folding Clip Hinge is used in electronics enclosure prototyping, miniature diorama builds, scale model production, thin-wall craft boxes, and educational kit assembly where speed and minimal footprint are critical.

Comparison with Larger XKY Hinges

For applications requiring screw-mount security, consider the 6229 Black Hinge (T06) which offers larger mounting holes. For heavy-duty box applications, the 6241 hinge (T09) provides a 38mm height for maximum load capacity.

See the Wikipedia overview of hinge types for context on clip hinge mechanisms.
