T04-2535 Black Cap Hinge 25x35mm

2535 Black Cap Hinge – Rectangular Cap Hinge for Medium Wooden Boxes

The 2535 Black Cap Hinge is the larger sibling of the 2525 model, offering a 35mm height for increased bearing surface and improved load distribution on medium-sized wooden lids and panels. Its four included snap-on dome caps maintain the same premium aesthetic required by luxury packaging manufacturers.

Structural Advantages of the Taller Profile

By extending the leaf height to 35mm, the 2535 Black Cap Hinge distributes hinge forces across a wider screw pattern, reducing point stress on box corners. This makes it suitable for lids weighing up to 800g when two hinges are installed.

Materials & Coating

The 0.6mm cold-rolled steel body is finished with a matte black electrophoretic coating for consistent colour across the leaf, hinge knuckle, and pin. The four dome caps are manufactured from the same steel and coated in the same batch for a flawless match.

Dimensions

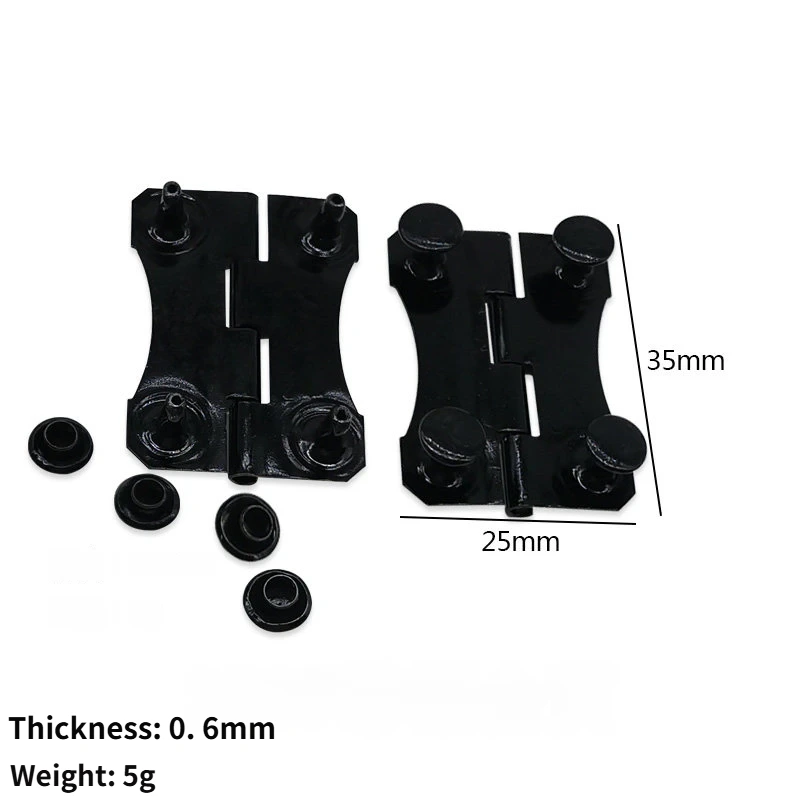

Width: 25mm | Height: 35mm | Total weight with caps: 5g | Leaf profile: Hourglass cutout design

Applications

Ideal for wooden wine box lids, medium keepsake chests, display cabinet doors up to 200mm wide, craft storage boxes, and tool box lids requiring a decorative yet functional hinge.

Ordering & Compatibility

The 2535 Black Cap Hinge ships in packs and is compatible with M3 × 8mm pan-head screws. For smaller lids, see the 2525 Black Cap Hinge (T03). Browse the full cap hinge range at XKY Framing for the complete size selection.

Reference our hinge selection guide for choosing the right hinge load rating.
