L39

L39-Silver Small Four-Hole L-Bracket Corner Brace 38mm Picture Frame

Silver Small Four-Hole L-Bracket Corner Brace 38mm L39 – 0.6mm

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Corner Brackets / L-Brackets
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

Silver Small Four-Hole L-Bracket Corner Brace 38mm – Compact Corner Support for Small Frames

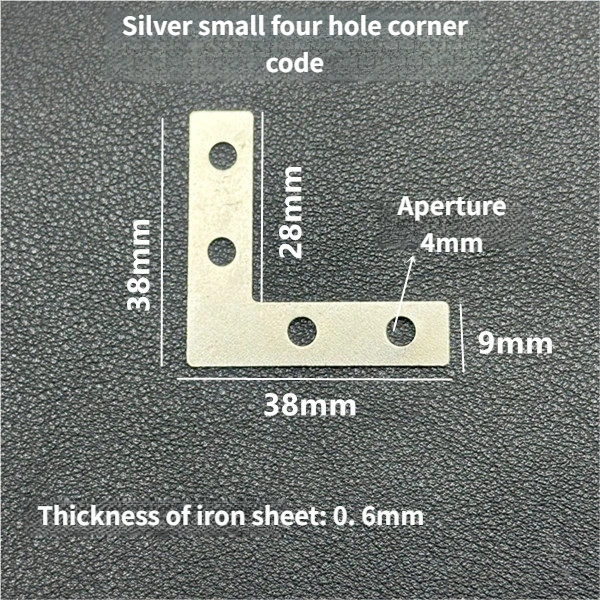

The Silver Small Four-Hole L-Bracket Corner Brace 38mm (SKU: L39) is the compact version of the 50mm series, offering equal 38×38mm arms (9mm wide), 0.6mm steel plate, and 4 × 4mm screw holes. Designed specifically for small picture frames, A4-size photo frames, and lightweight decorative boxes where the larger L37 or L38 would be disproportionate to the frame size.

Right-Size Corner Support: Silver Small Four-Hole L-Bracket Corner Brace 38mm

The Silver Small Four-Hole L-Bracket Corner Brace 38mm fills the small-frame bracket niche with precision. Its 28mm inner step keeps the screw holes well within the frame arm material, while the 38mm total arm length ensures sufficient overlap at the corner for solid joint reinforcement without protruding beyond standard small-frame profiles.

Specifications

Use Case Guidance

The Silver Small Four-Hole L-Bracket Corner Brace 38mm is recommended for frames up to 30×40cm (A3 size), small shadow boxes, jewelry display boxes, and any lightweight wooden corner joint. For the version with screws included, see our L40 with screws. Shop compact L-brackets at Amazon’s small corner brace selection.

FAQ

Q: How does L39 differ from L37?
A: L39 is 38mm (inner step 28mm) vs L37’s 50mm (inner step 40mm). L39 for small frames; L37 for medium.

Q: Is L39 strong enough for wood frames?
A: Yes for small-to-medium frames. Use two per corner back-to-back for extra rigidity if needed.

Q: What is the inner step?
A: 28mm from corner apex to first screw hole, with 38mm outer arm for 10mm corner overlap.

Specifications

SKU	L39
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The L39 Silver Small Four-Hole L-Bracket is the compact 38×38mm counterpart to L37’s 50×50mm. With 9mm arm width, 0.6mm plate, and 4 × 4mm holes, it is ideal for small photo frames, A4/A5-size picture frames, and lightweight decorative shadow boxes where the 50mm bracket would be oversized.</p>
Highlights	38mm, small, 4-hole
Custom Packaging	Yes
Plate Thickness	0.6 mm
Long Arm Length	38 mm
Short Arm Length	38 mm
Arm Width	9 mm
Screw Hole Diameter	4 mm
Number of Holes	4
Material	Steel, zinc plated
Includes Screws	No (sold separately)
Inner Step Height	28 mm

Key specs
—	9

FAQ

How does L39 differ from L37?How does L39 differ from L37?

Is L39 strong enough for wooden frames?

Yes. The 0.6mm steel plate and 4mm hole design handle standard small-to-medium wooden picture frame corners effectively. For extra rigidity, use two L39 brackets per corner on back-to-back orientation.

What is the inner step measurement on L39?

The inner step is 28mm, meaning the screw holes are positioned 28mm from the corner apex. The outer arm is 38mm, leaving 10mm of corner overlap material.
