L49-Silver Cross-Slot L-Bracket Corner Brace 45mm Picture Frame

Silver Cross-Slot L-Bracket Corner Brace 45mm L49 – 0.6mm

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Corner Brackets / L-Brackets
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

Silver Cross-Slot L-Bracket Corner Brace 45mm – Unique Cross-Pattern Corner Hardware

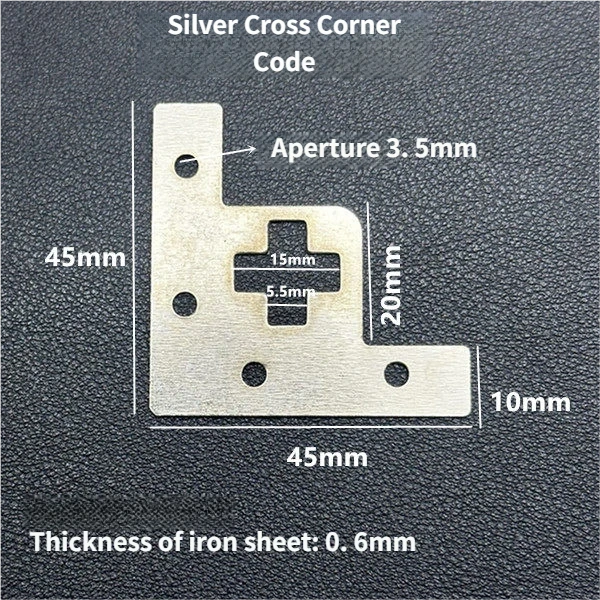

The Silver Cross-Slot L-Bracket Corner Brace 45mm (SKU: L49) brings a distinctive cross-shaped slot (15mm × 5.5mm) to the standard L-bracket format, creating one of the most visually and functionally unique corner hardware pieces in the XKY Framing range. With 45×45mm equal arms (10mm wide), 0.6mm steel plate, and 4 × 3.5mm screw holes, L49 serves both standard corner bracing and specialized adjustable or flush-mount installations.

The Cross-Slot Feature of the Silver Cross-Slot L-Bracket Corner Brace 45mm

The Silver Cross-Slot L-Bracket Corner Brace 45mm uses its cross-shaped slot as a functional advantage: the slot allows micro-adjustment of bracket position relative to a fixed fastener before final locking, enables bracket-over-bracket overlapping for reinforced corner systems, and can serve as a flush-mount slot for panel alignment hardware. The cross pattern itself adds a distinctive aesthetic quality to the bracket when visible.

Technical Specifications

Applications and Installation

The Silver Cross-Slot L-Bracket Corner Brace 45mm suits frames requiring adjustable corner alignment, flush-mount canvas systems, and any installation where bracket positioning flexibility is valued. For the kit with screws, see our L50 with screws. Browse cross-slot brackets at Amazon’s cross-slot corner brace selection.

FAQ

Q: What is the cross slot used for?
A: Adjustable positioning, bracket-overlap joints, and flush-mount applications with protruding hardware.

Q: Why 3.5mm holes?
A: Appropriate for No.6–No.8 screws on 0.6mm plate — clean controlled installation on standard moulding backs.

Q: What is the arm width?
A: 10mm — slightly wider than standard 9mm for improved hole edge strength.

Specifications

SKU	L49
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The L49 Silver Cross-Slot L-Bracket introduces a unique cross-shaped slot (15mm × 5.5mm) at the corner section of a 45×45mm, 0.6mm steel bracket. The 4 standard 3.5mm holes provide screw-fastened corner joining, while the cross slot enables flush-mount applications, cross-bracket overlap joints, or decorative presentation of the hardware’s cross pattern.</p>
Highlights	Cross slot, 45mm, 10mm
Custom Packaging	Yes
Plate Thickness	0.6 mm
Long Arm Length	45 mm
Short Arm Length	45 mm
Arm Width	10 mm
Screw Hole Diameter	3.5 mm
Number of Holes	4 screw holes + 1 cross slot
Material	Steel, zinc plated
Includes Screws	No (sold separately)
Inner Step Height	N/A

Key specs
—	9

FAQ

What is the cross slot on L49 used for?What is the cross slot on L49 used for?

Why does L49 use 3.5mm holes instead of 4mm?

The 3.5mm holes are compatible with No.6 or No.8 screws, appropriate for the 0.6mm plate thickness and the medium 45mm arm length. They provide a clean, controlled installation on standard frame moulding backs.

What is the arm width on L49?

L49 features a 10mm arm width — slightly wider than the 9mm arms on standard brackets — providing extra material around the screw holes for better holding strength relative to the 3.5mm hole diameter.
