K16

K16-Silver Six-Hole D-Ring Hanger 50kg Extra Heavy Duty

Silver Six-Hole D-Ring Hanger 50kg K16 – 106mm

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / D-Rings / Hanging Hooks
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

Silver Six-Hole D-Ring Hanger 50kg Extra Heavy Duty – The Ultimate Anchoring Solution

The Silver Six-Hole D-Ring Hanger 50kg Extra Heavy Duty (SKU: K16) is the flagship of the XKY Framing D-ring range — the longest body (106mm), the most anchor points (six holes), a 2.6mm ring wire, and a 50kg theoretical load. This nickel-plated hanger represents the maximum-security option for the largest paintings, heaviest mirrors, industrial art installations, and any display where failure is not an acceptable outcome.

Six-Point Engineering of the Silver Six-Hole D-Ring Hanger 50kg

The Silver Six-Hole D-Ring Hanger 50kg Extra Heavy Duty distributes its 50kg load across six 5mm screw holes along a 62mm plate body. This six-point grid provides resistance against all failure modes simultaneously: downward pull, rotational movement, horizontal shear, and torsional twist. No other configuration in the standard hanger range matches the K16’s comprehensive anchoring profile.

Full Technical Specifications

Professional Installation Requirements

The Silver Six-Hole D-Ring Hanger 50kg Extra Heavy Duty should be installed with all six screws using No.10 or No.12 fasteners into wall studs or heavy-duty masonry anchors. Use No.10 or No.12 screws with minimum 25mm penetration. For a compact high-load alternative, see our K01 Small Gold D-Ring Hanger for the full product range.

Find six-hole ultra-heavy-duty hangers at Amazon’s extra heavy-duty D-ring picture hangers.

Frequently Asked Questions

Q: Why does K16 have six holes?
A: Six anchor points deliver maximum pull-out and rotation resistance — the highest security of any standard hanger.

Q: How does K16 compare to K07/K08 at 50kg?
A: K16 achieves 50kg through wider distribution (six holes, 106mm) for superior torsional resistance vs K07/K08’s thick-plate approach.

Q: What ring wire does K16 use?
A: 2.6mm — matched to K11’s ring wire — providing high tensile strength under sustained 50kg loads.

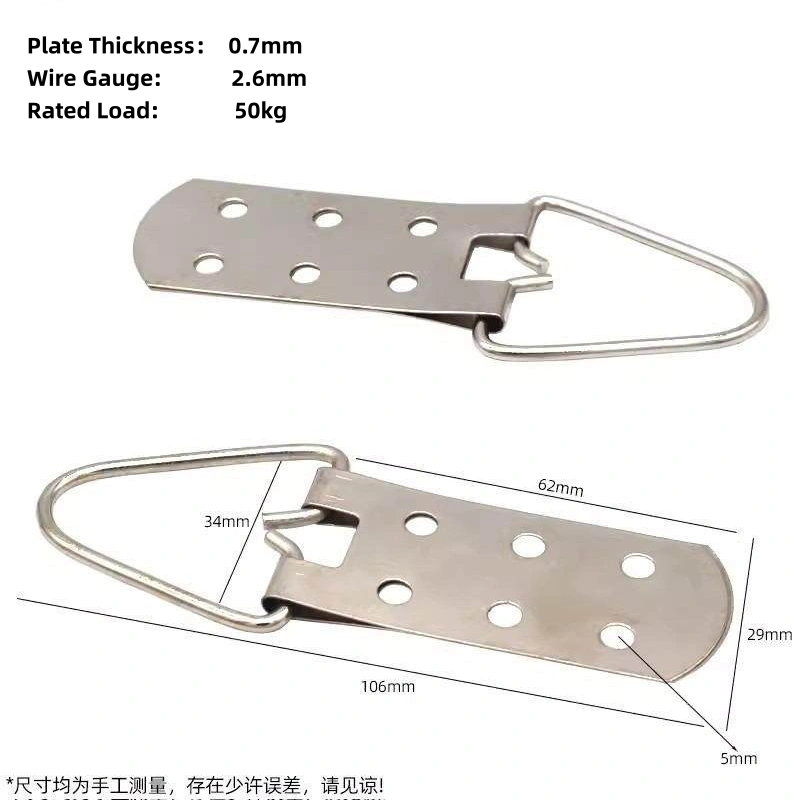

Specifications

SKU	K16
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The K16 Silver Six-Hole D-Ring Hanger is the ultimate standard-range hanger, measuring 106mm total length with six 5mm screw holes, a 2.6mm ring wire, and 50kg load capacity. Designed for the largest and heaviest art installations, oversized mirrors, industrial display panels, and any application demanding absolute maximum anchoring security.</p>
Highlights	50kg, 6-hole, 106mm
Custom Packaging	Yes
Plate Thickness	0.7 mm
Ring Wire Diameter	2.6 mm
Load Capacity	50 kg
Total Length	106 mm
Plate Width	62 mm
Plate Height	29 mm
Ring Height	34 mm
Screw Hole Diameter	5 mm
Number of Screw Holes	6
Material	Steel, nickel plated

Key specs
—	9

FAQ

Why does K16 have six screw holes?Why does K16 have six screw holes?

How does K16 compare to K07/K08 at the same 50kg rating?How does K16 compare to K07/K08 at the same 50kg rating?

How does K16 compare to K07/K08 at the same 50kg rating?

While K07/K08 achieve 50kg through a thick 1mm plate and heavy 2.3mm ring, K16 achieves 50kg through a wider distribution — six holes across a 106mm plate — providing superior resistance to torsional (twisting) forces.

What ring wire diameter does K16 use?

K16 uses a 2.6mm ring wire — the same diameter as the K11 bull head hanger — providing excellent tensile strength and resistance to deformation under sustained 50kg loads.
