K15-Silver Four-Hole D-Ring Hanger 40kg Extra Large

Silver Four-Hole D-Ring Hanger 40kg Extra Large – Maximum Anchor for Oversized Art

The Silver Four-Hole D-Ring Hanger 40kg Extra Large (SKU: K15) brings four-point anchoring to the XKY Framing D-ring lineup, delivering the highest pull-out and rotation resistance available in a standard hanger format. With a 88mm total length, 44×28mm plate, 2.5mm ring wire, four 5mm screw holes, and a 40kg theoretical load rating, K15 is engineered for oversized frames, large decorative mirrors, and extra-heavy canvas works.

Four-Point Engineering of the Silver Four-Hole D-Ring Hanger 40kg Extra Large

The Silver Four-Hole D-Ring Hanger 40kg Extra Large distributes its 40kg load across four mounting screws, each through a generous 5mm hole. The 28mm plate height — the tallest in the standard range — provides a wide mounting surface that maximizes the spacing between screw rows, creating a robust grid anchor that resists both downward pull and rotational forces simultaneously.

Technical Specifications

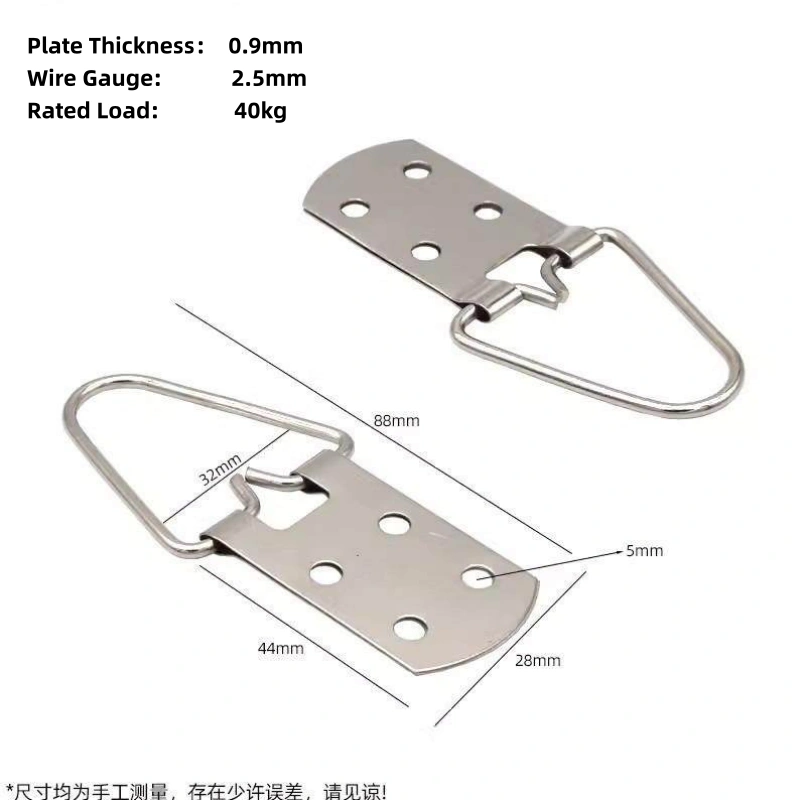

Total length: 88mm | Plate: 44mm (length) × 28mm (height) | Thickness: 0.9mm | Ring wire: 2.5mm | Ring height: 32mm | Screw holes: 5mm (×4) | Finish: Nickel plated | Load: 40kg.

When to Specify K15

The Silver Four-Hole D-Ring Hanger 40kg Extra Large is the recommended specification for frames and mirrors in the 30–40kg range, large triptych panel installations, and any application where the highest standard hanger security is required. For the ultimate six-hole configuration, see our K16 Silver Six-Hole 50kg Hanger.

Find four-hole heavy-duty hangers at Amazon’s four-hole D-ring picture hangers.

Frequently Asked Questions

Q: What is the advantage of four holes vs three?
A: Maximum pull-out and rotation resistance across four anchor points — ideal for heavy art in vibration-prone locations.

Q: What screw size fits K15?
A: 5mm holes — the largest in the range — for No.10 or No.12 screws.

Q: How large is the K15 ring opening?
A: 32mm ring height with 2.5mm wire — generous opening for heavy-gauge picture wire.
