S05-PW13-2 Compact Picture Frame Turn Button Clip

The PW13-2 Compact Picture Frame Turn Button Clip (SKU S05) brings the rotating convenience of XKY Framing’s PW13 turn-button design into a smaller, more versatile package. At 26 mm in total length and just 0.8 g, this compact clip fits frames that are too small for the full-size PW13 (S04) while delivering the same tool-free rotation-to-release mechanism that makes turn-button clips the professional’s choice for frequently opened frames.

Compact Dimensions, Same Turn-Button Convenience

The PW13-2 Compact Picture Frame Turn Button Clip reduces the PW13 design proportionally: the body narrows from 13 mm to 12 mm, the slot shrinks from 13×13 mm to 12×11 mm, and the clip height reduces from 10 mm to 8 mm. Total length reduces from 35 mm to 26 mm. The result is a clip that fits in narrow-rabbet frames — from small 15×20 cm frames up to medium 25×35 cm frames — while retaining full rotation functionality.

The lower 8 mm height is especially valuable in frames that will be stored face-to-face or displayed in a shadow box frame where back protrusion must be controlled. Standard spring clips of this size protrude 6–9 mm; the PW13-2’s 8 mm profile keeps the frame back nearly as flat as a fixed clip while maintaining full rotation-release capability.

Specifications

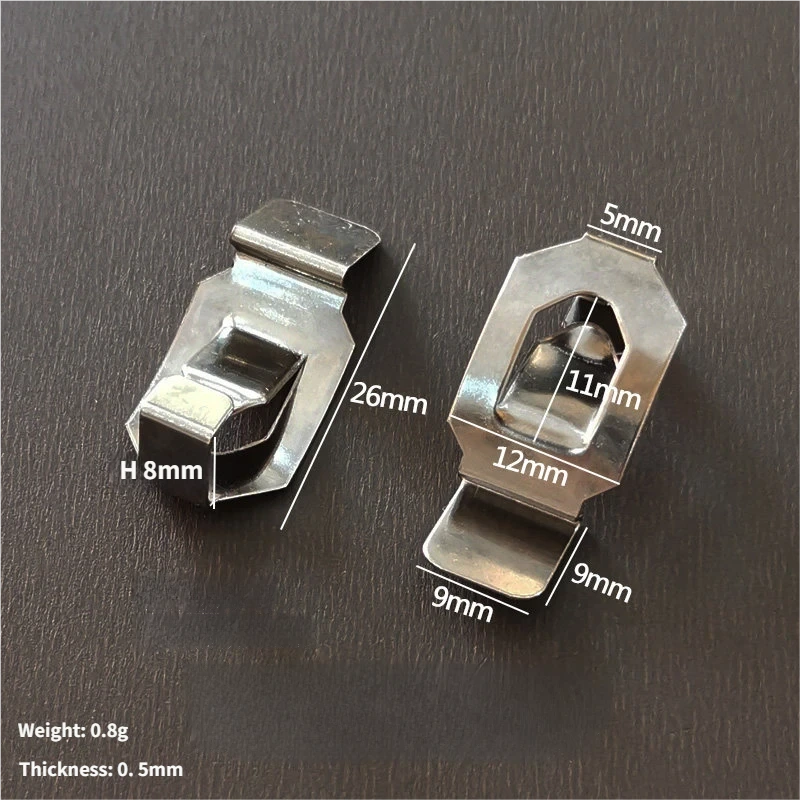

Material: 0.5 mm stainless steel | Finish: bright silver | Total length: 26 mm | Body width: 12 mm | Slot: 12×11 mm | Foot: 9×9 mm | Height: 8 mm | Top width: 5 mm | Weight: 0.8 g.

Where to Use the PW13-2 Compact Turn Button Clip

The S05 is the preferred clip for: small display frames refreshed monthly (e.g., office memo frames, rotating desk calendar frames); school awards frames updated each term; small menu or price list frames in retail and hospitality; compact photo display frames where content is changed seasonally; and any small frame that needs turn-button convenience but cannot accommodate the larger PW13 body.

Installation and Release Procedure

Mount the clip through a small raised boss or screw on the frame back with the clip in the perpendicular (open) position. Load the content stack and rotate the clip parallel to the rabbet edge to lock. To release, rotate back to perpendicular and lift the backing board free — the clip remains attached to the frame throughout.

Mixing PW13 and PW13-2 in One Frame

For landscape-format frames, some professional framers use PW13 (S04) clips on the longer horizontal sides (where more holding force is needed) and PW13-2 (S05) clips on the shorter vertical sides (where the narrow rabbet depth restricts clip body height). This hybrid approach optimises retention strength while maintaining the turn-button convenience across all four sides.

PW13-2 vs. Standard Fixed Spring Clips for Small Frames

If your small frames are assembled permanently and never re-opened, the PW20 small clip (S01) is the more economical choice. The PW13-2 Compact Picture Frame Turn Button Clip is worth the slight premium for any frame that will be opened even twice a year — the time saved and risk of frame damage avoided more than justify the selection of the rotating clip design.

Order the PW13-2 Compact Picture Frame Turn Button Clip from XKY Framing today and add effortless content-change capability to your small-frame collection.
