XKY-N31

N31-Gold Medium Bow Hanging

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Picture Framing Hardware / Sawtooth Hangers
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

The gold medium bow bracket is essential for shadow boxes and deep profile frames. The 19mm arch allows the hardware to protrude exactly where you need it.

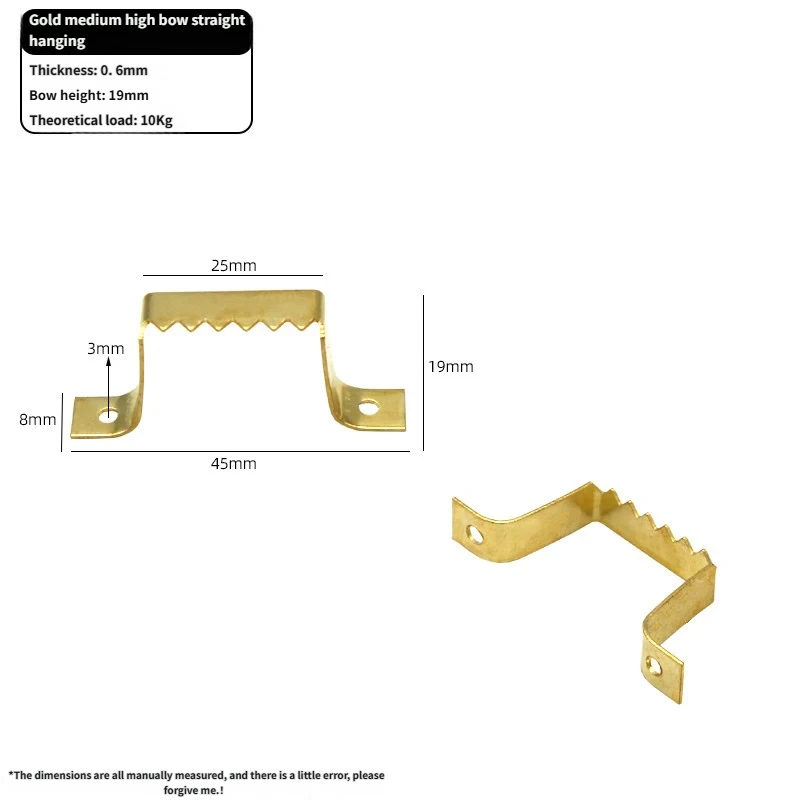

Specifications

SKU	XKY-N31
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The gold medium bow bracket is essential for shadow boxes and deep profile frames. The 19mm arch allows the hardware to protrude exactly where you need it.</p>
Highlights	19mm Medium Arch
Custom Packaging	Yes
thickness	0.6
weight	~3.5
over all length	45
over all width height	8
bow/arch height	19
slot tooth length	25
slot tooth height	~5
screw hole diameter	oval ~4
screw hole spacing	~30
material finish	Cold-rolled steel, gold-tone plated
color	Gold

Key specs
—	9

FAQ

What moulding depth does a 19 mm bow accommodate?

A 19 mm bow handles moulding depths up to approximately 15–17 mm, the deepest in the standard XKY strip hanger range.

Is the 19 mm bow hanger harder to install?

No – installation is the same; simply align holes, drive screws, and hang on nails. The tall bow does make the hanger more visible on very shallow frames.

What is the difference between N30 (15 mm) and N31 (19 mm)?

N31 has a 4 mm taller bow and is 10 mm shorter in total length (45 vs 55 mm), making it better for compact thick-moulding applications.
