Get quoteDescription

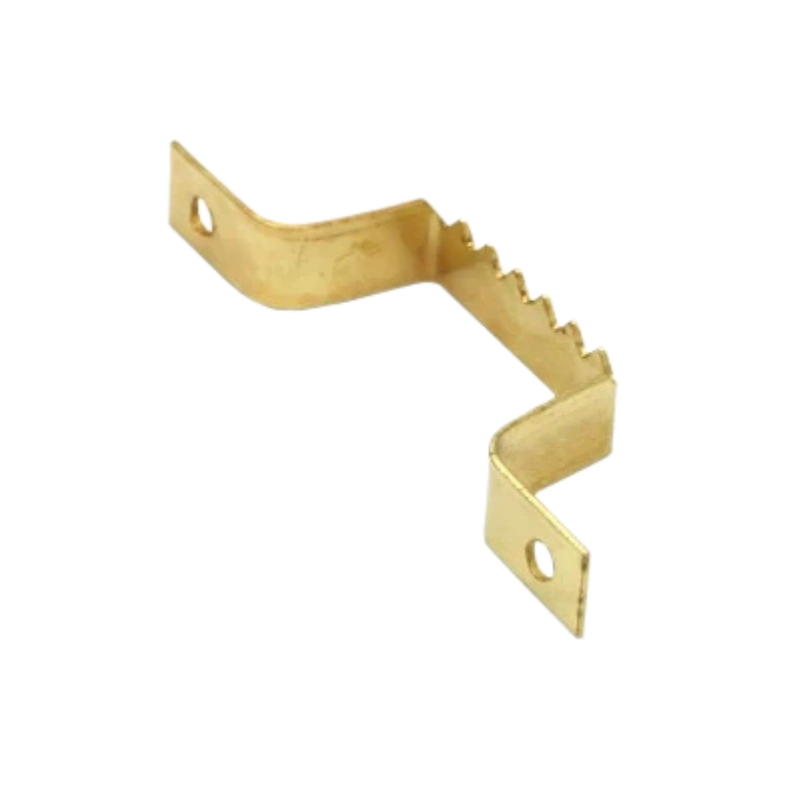

When your frame has a deep recess, the golden bow straight hook bridges the gap. Its extreme 15mm bow height ensures a solid connection for 10Kg loads.
Specifications
| SKU | XKY-N30 |
|---|---|
| Product Type | hardware |
| MOQ | 100 |
| Lead Time | 7-10days |
| Overview | <p>When your frame has a deep recess, the golden bow straight hook bridges the gap. Its extreme 15mm bow height ensures a solid connection for 10Kg loads.</p> |

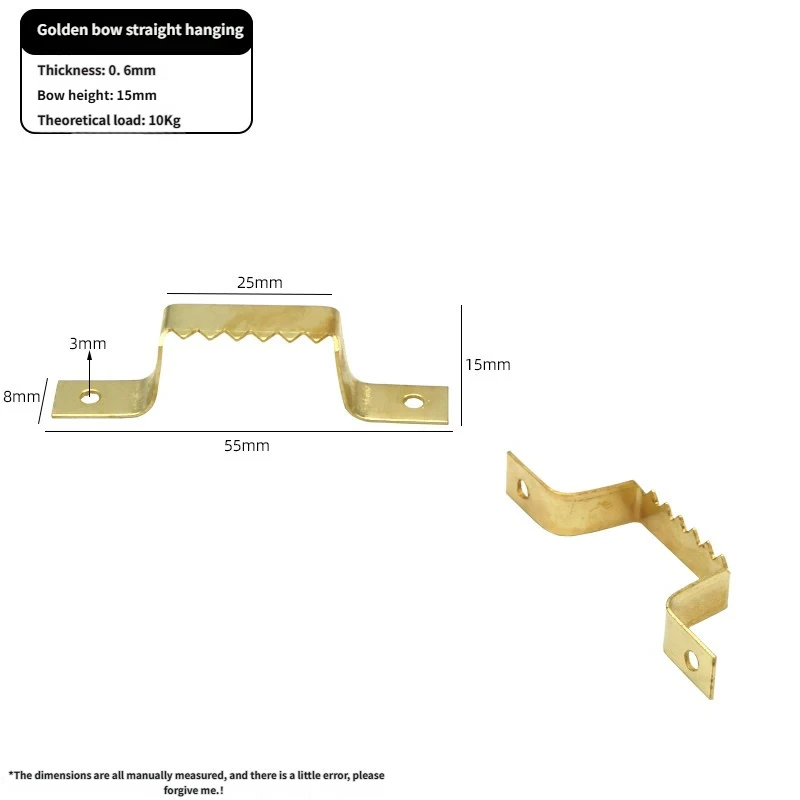

| Highlights | 15mm High Bow |
| Custom Packaging | Yes |
| thickness | 0.6 |
| weight | ~3.5 |
| over all length | 55 |
| over all width height | 8 |
| bow/arch height | 15 |
| slot tooth length | 25 |
| slot tooth height | ~5 |
| screw hole diameter | oval ~4 |
| screw hole spacing | ~40 |
| material finish | Cold-rolled steel, gold-tone plated |
| color | Gold |
| — | 9 |
|---|
FAQ
When would I need a 15 mm bow height?
Use a 15 mm bow for thick mouldings (depth > 10 mm), where a low-bow hanger's sawtooth zone would be recessed too far behind the wall plane.
Does the high bow reduce load capacity?
Yes slightly – the taller arch creates more lever arm; N30 is rated 10 kg vs 15 kg for flat strip designs of the same thickness.
Can two N30 hangers support a large gilded mirror?
Yes – two N30 hangers spaced appropriately can support up to 20 kg combined, suitable for most standard gilt mirrors.
