R07-Black Trumpet Trapezoidal Frame Bracket

Black Trumpet Trapezoidal Picture Frame Easel – Compact Precision for Small Frames

The Black Trumpet Trapezoidal Picture Frame Easel (SKU R07) is one of XKY Framing’s most unique bracket designs, combining a three-crossbar trapezoidal ladder body with a distinctive trumpet-shaped top hinge. The result is a bracket that offers both the rigid structure of the trapezoidal family and a compact 118 mm footprint perfectly sized for the 15–18 cm frame range.

The Trumpet Hinge Explained

The Black Trumpet Trapezoidal Picture Frame Easel takes its name from the curved arc cut into the top hinge head. Unlike rectangular hinge openings, the arc shape distributes the frame’s weight across a curved contact surface, reducing point stress at the pivot and providing a fluid hinge action. This design detail reflects XKY Framing’s engineering focus: every millimetre of the bracket is purposeful.

Near-Parallel Legs for Deep-Shelf Stability

One of the standout features of the R07 is its near-parallel leg geometry. The legs diverge only 3 mm from top (43 mm) to base (46 mm), creating an almost rectangular stance footprint. This is ideal for display scenarios where depth is limited—deep bookshelves, display cases, and window sill arrangements—where a wide-splay tailcoat bracket would extend beyond the shelf edge.

H2: Load Ratings and Frame Compatibility

The Black Trumpet Trapezoidal Picture Frame Easel is rated for 1 kg and fits frames 15–18 cm tall—the same range as the R01 small tailcoat and R03 white small tailcoat. The trapezoidal structure, however, provides greater torsional rigidity, making it the preferred option for frames with asymmetric weight distribution (e.g., frames with a heavy ornamental corner detail).

H3: Ideal Display Environments

The R07 shines in: display cabinets and vitrines, deep bookshelves, windowsill photo arrangements, retail jewellery and accessory displays, and museum-style tabletop exhibits where a minimal footprint is critical.

H4: Specifications Recap

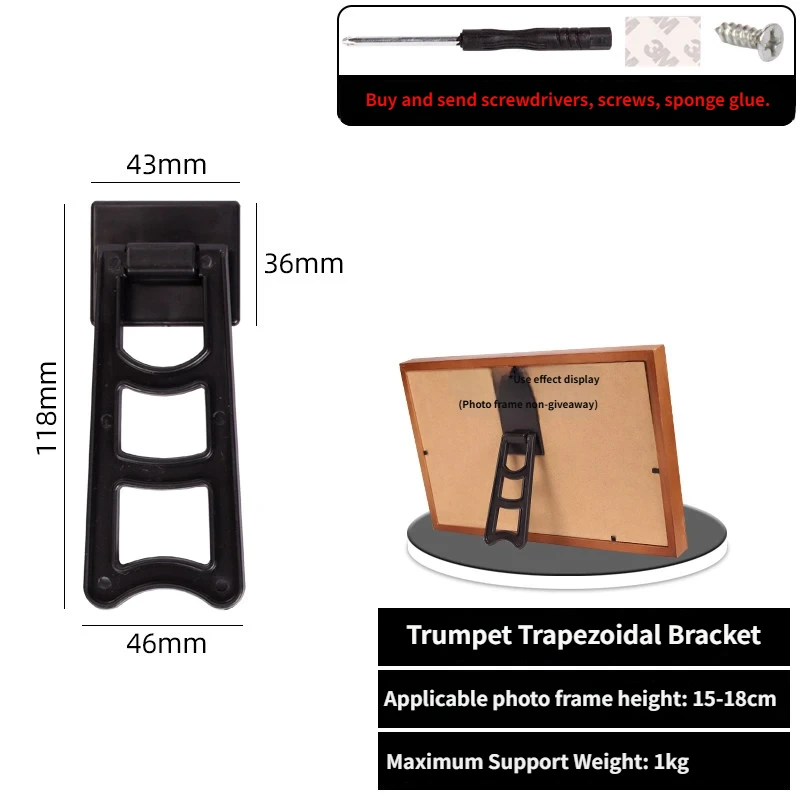

Total length: 118 mm | Top: 43 mm | Base: 46 mm | Head height: 36 mm | Frame range: 15–18 cm | Max load: 1 kg | Material: Black ABS | Mounting: screw or adhesive.

H2: Why the R07 Stands Out in the XKY Framing Range

Among all XKY Framing’s small brackets, the R07 is the only one with a nearly parallel leg profile. This makes it uniquely suited to confined display spaces, distinguishing it clearly from the splay-legged tailcoat alternatives.

Conclusion

If your display space demands a compact footprint without sacrificing structural integrity, the Black Trumpet Trapezoidal Picture Frame Easel is your ideal match. Order it today from XKY Framing with a full hardware kit included.
