NN25-Adjustable Locking Positioning Handle M7 for Corner Nailer

adjustable locking positioning handle corner nailer M7 orange lever 75mm arm 25mm thread fast clamp

Industrial machinery

Request a quote

Factory-direct pricing · EXW Yiwu

Available — confirm lead time with sales

Category: Framing Machinery & Consumables / Equipment Packages / Starter Kits
MOQ: 100
Lead time: 7-10days

Get quote

View range Contact us

Description

Adjustable Locking Positioning Handle Corner Nailer M7 – NN25

The adjustable locking positioning handle corner nailer M7 NN25 is the fast, tool-free clamping solution for securing positioning blocks, stop fences, and guides on your corner nailer. The distinctive orange lever body allows operators to tighten and release positioning fixtures in seconds, dramatically speeding up setup changes between frame sizes and shapes.

How Adjustable Locking Handles Work

The adjustable locking positioning handle corner nailer NN25 uses a pivoting lever cam mechanism. Rotating the orange lever tightens the threaded stud into the mounting hole, compressing the positioning block firmly against the machine table. Unlike fixed nuts and bolts, the lever can be released and retightened repeatedly without tools, making frequent adjustments practical during mixed production runs.

Specifications

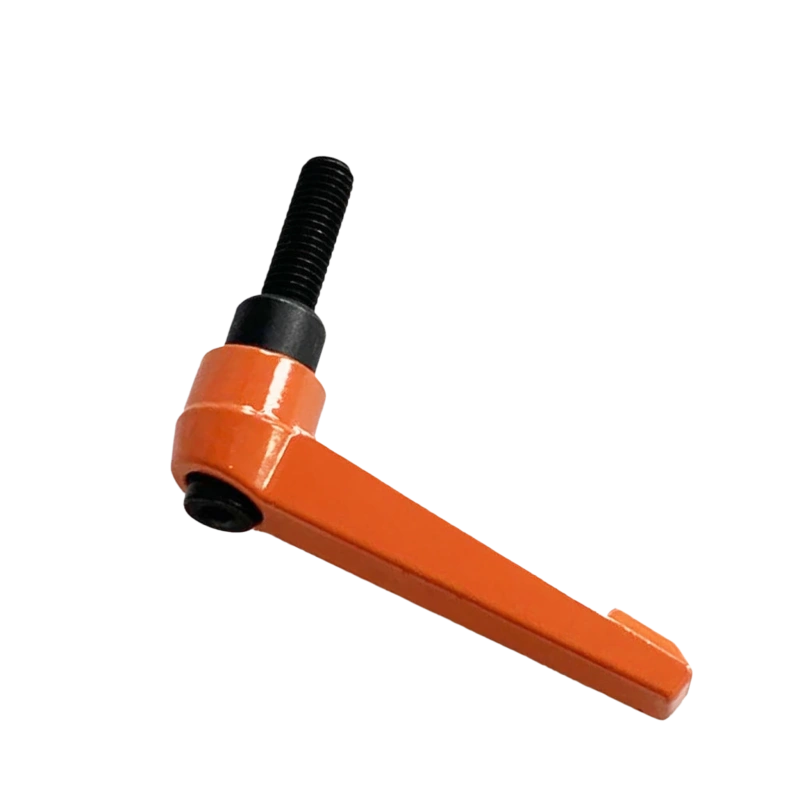

The NN25 features a 75mm orange lever arm for comfortable grip, a black M7 threaded stud (7mm diameter), and a 25mm thread length that fits the standard mounting hole depth on XKY Framing positioning blocks. The zinc alloy lever body is durable and resistant to workshop impacts.

Applications on Corner Nailers

Use the NN25 adjustable locking positioning handle corner nailer to secure: 90°/120°/135° positioning blocks (NN22, NN23, NN24), corner nailer stop fences, batch-cutting guides, and other adjustable fixtures. Any component with an M7 threaded mounting hole can be clamped with this handle for quick, confident fixation.

Choosing Between NN25 and NN26

XKY Framing offers two handle sizes: NN25 with M7×25mm thread for standard positioning blocks, and NN26 with M6×40mm thread for thicker fixtures or different mounting configurations. Check your existing block or fence mounting hole specifications before ordering. Both handles share the same 75mm orange lever arm design.

Why This Matters for Production Efficiency

In a busy frame production environment, minimizing setup time between jobs directly impacts output. A corner nailer operator who can swap and re-clamp a positioning block in 10 seconds versus 2 minutes with a wrench can handle significantly more job changes per shift. The adjustable locking positioning handle corner nailer NN25 is a small part that makes a big difference in daily workflow.

Order the NN25 adjustable locking positioning handle corner nailer M7 today and streamline your frame production setup changes with XKY Framing quality parts.

Specifications

SKU	NN25
Product Type	hardware
MOQ	100
Lead Time	7-10days
Overview	<p>The NN25 Adjustable Locking Positioning Handle is an orange lever-type clamping handle used on corner nailers to quickly secure positioning blocks and fences without tools. Features a 75mm lever arm for easy grip and tightening torque, a 7mm thread diameter stud, and a 25mm threaded shank. The pivoting lever mechanism provides strong clamping force from a simple hand twist.</p>
Highlights	Tool-Free M7 Clamp
Custom Packaging	Yes
Thread Diameter	M7 (7mm)
Thread Length	25mm
Lever Arm Length	75mm
Color	Orange
Application	Corner nailer positioning block clamping

Key specs
—	6

FAQ

What thread size is the NN25 handle?

The NN25 has a 7mm diameter threaded stud with a 25mm threaded length (M7×25), suitable for the standard mounting holes on XKY Framing positioning blocks and nailer fences.

What is the lever arm length and what advantage does it give?

The lever arm is 75mm long. This provides sufficient mechanical advantage for a firm hand-tightened clamp, securing positioning blocks against the force of pneumatic nailing without needing a wrench.

What is the difference between NN25 and NN26 handles?

NN25 has a 7mm thread diameter and 25mm thread length (M7×25), while NN26 has a 6mm thread diameter and 40mm thread length (M6×40). The choice depends on the mounting hole size of your specific positioning block or machine fixture.
