Y18-1.2mm PVC Coated Stainless Steel Wire Rope

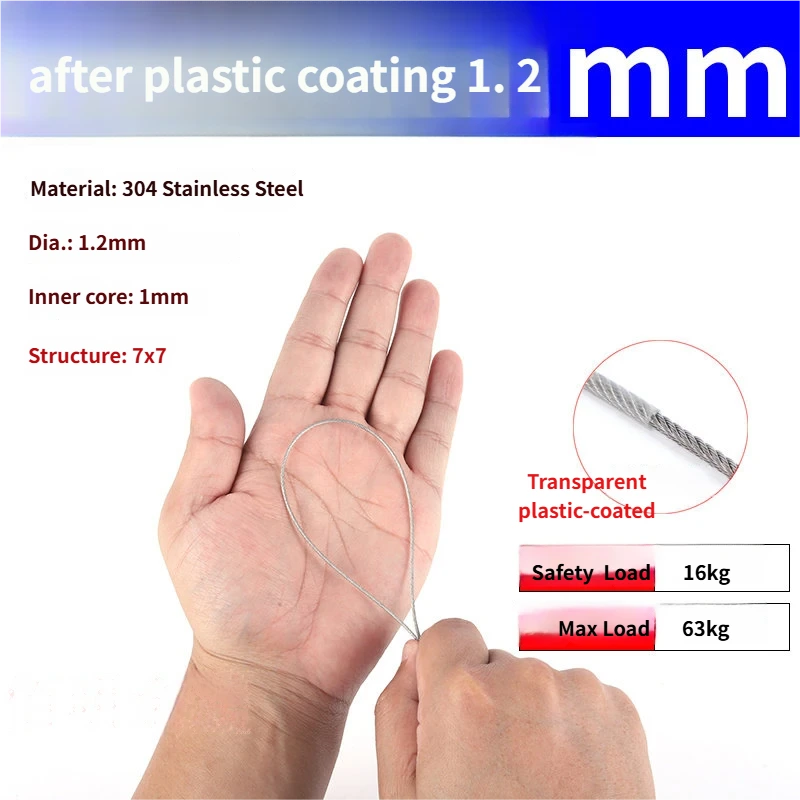

1.2mm PVC Coated 7×7 Stainless Steel Wire Rope – Complete Product Guide

The 1.2mm PVC Coated 7×7 Stainless Steel Wire Rope is the go-to cable solution for professional framers, interior designers, and DIY enthusiasts who demand reliable, long-lasting performance. Manufactured from grade 304 stainless steel, this 1.2mm cable delivering the ideal balance of rigidity and flexibility for picture hanging.

Key Specifications of the 1.2mm PVC Coated 7×7 Stainless Steel Wire Rope

Every metre of the 1.2mm PVC Coated 7×7 Stainless Steel Wire Rope is constructed to exacting tolerances. The 7×7 strand pattern consists of 7 bundles, each containing 7 individual wires, resulting in a smooth, kink-resistant cable that feeds cleanly through picture rail hooks and cable clips. The 1.2mm diameter sits inside standard 1.2mm crimp sleeves without modification.

Load Ratings You Can Trust

The 1.2mm PVC Coated 7×7 Stainless Steel Wire Rope carries a safe working load of 16kg and a certified maximum breaking load of 63kg. These figures are calculated conservatively to ensure a generous safety factor — a critical requirement for suspended displays in public venues.

Unlike bare steel cables, this 1.2mm PVC Coated 7×7 Stainless Steel Wire Rope features a crystal-clear PVC jacket over a 1.0mm inner core. The coating prevents moisture ingress, resists minor impacts, and protects adjacent surfaces — an ideal choice for high-traffic gallery walls and retail fixture installations.

Applications for the 1.2mm PVC Coated 7×7 Stainless Steel Wire Rope

This cable excels across a wide range of hanging and support applications:

• Picture rail and gallery wall systems
• Cable trellis and plant support in garden rooms
• Suspended signage and retail display fixtures
• Architectural cable railings on staircases and balconies
• Boat rigging and marine hardware where corrosion resistance matters

Why Choose 304 Stainless Steel?

304 stainless steel contains 18% chromium and 8% nickel, creating a passive oxide layer that resists rust even in humid or coastal environments. Compared to galvanised mild steel, the 1.2mm PVC Coated 7×7 Stainless Steel Wire Rope shows no white rust after extended exposure to moisture — keeping your installation looking pristine for years.

Installation Tips for the 1.2mm PVC Coated 7×7 Stainless Steel Wire Rope

Pair this cable with aluminium ferrule crimp sleeves of the matching 1.2mm bore size. Use a dedicated ratchet crimping tool for secure, professional terminations. Avoid bending the cable at angles sharper than 10× the wire diameter to preserve the rated break load. When routing through pulleys or cable guides, ensure the sheave groove diameter matches the 1.2mm outer diameter of the cable.

Frequently Asked Questions

Can the 1.2mm PVC Coated 7×7 Stainless Steel Wire Rope be cut to custom lengths?
Yes. Use aviation snips or a rotary cutting wheel for clean ends. Apply a small dab of clear adhesive to prevent strand fraying immediately after cutting.

Is this cable suitable for outdoor use?
Absolutely. Grade 304 stainless steel performs well in most outdoor environments. For coastal or heavily chlorinated environments, consider upgrading to 316 stainless steel.

What connectors are compatible?
Standard 1.2mm aluminium crimp ferrules, wire rope clamps, and swage-style end fittings all fit without modification.
